What Is a Water Pump Automatic Assembly Integrated Machine?

A Water Pump Automatic Assembly Integrated Machine is a fully automated production system designed to assemble water pumps with minimal manual labor. Instead of relying on workers to handle every assembly step, the machine combines feeding, positioning, pressing, fastening, testing, inspection, and unloading into one intelligent system.

It is widely used in automotive water pumps, industrial pumps, household booster pumps, agricultural pumps, and electric coolant pumps production.

Compared with traditional manual assembly, the integrated machine improves production speed, assembly consistency, and product quality while reducing labor costs and human errors.

For manufacturers facing rising labor costs and increasing quality requirements, automated water pump assembly is becoming a necessary upgrade rather than an optional investment.

Main Components of the Machine

Different pump products require different configurations, but a typical water pump automatic assembly integrated machine usually includes the following parts:

Automatic Feeding System

The feeding system automatically arranges and delivers components such as:

• Pump housings
• Bearings
• Shafts
• Impellers
• Seals
• Screws
• Rotors
• Covers

Common feeding devices include vibratory bowl feeders, flexible feeders, tray feeders, and conveyor systems.

This eliminates manual material handling and keeps production continuous.

Industrial Robot

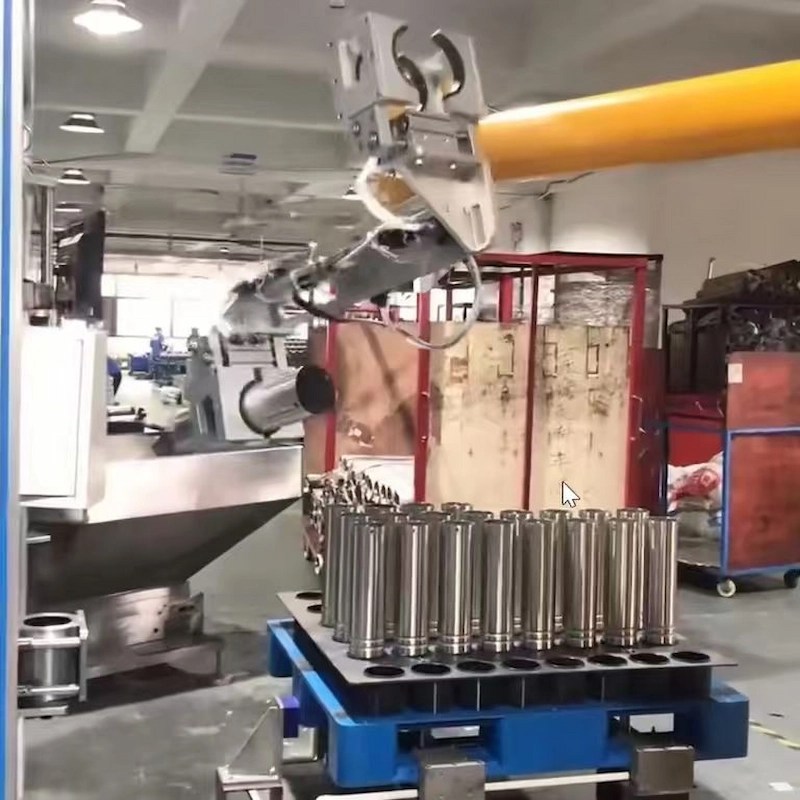

Industrial robots handle pick-and-place operations, component loading, assembly transfer, and unloading.

Robots improve precision and stability while allowing flexible production for different pump models.

Typical robot applications include:

• Bearing loading
• Shaft insertion
• Impeller placement
• Product transfer between stations
• Finished product palletizing

Robots are widely used in industrial production due to their high degree of flexibility. We also have case study of robots loading automotive engine cylinder heads: Automated Assembly Line for Engine Cylinder Head

Precision Press-Fit Unit

Many water pump components require accurate press fitting.

The servo press system controls:

• Pressing force
• Position accuracy
• Speed
• Real-time monitoring

This prevents component damage and ensures consistent assembly quality.

Screw Tightening System

Automatic screwdrivers or servo tightening modules complete fastening operations with controlled torque.

The system can automatically detect:

• Missing screws
• Incorrect torque
• Loose fastening

This reduces defective products caused by human mistakes.

Leak Testing System

Leak testing is one of the most important processes in water pump manufacturing.

The integrated testing station checks sealing performance through:

• Air pressure testing
• Flow testing
• Vacuum testing

Unqualified products are automatically rejected.

Vision Inspection System

Industrial cameras and vision systems inspect:

• Part position
• Assembly accuracy
• Surface defects
• Barcode or QR code information

Vision inspection improves traceability and reduces quality risks.

Visual inspection includes 2D and 3D methods. We will select the appropriate visual inspection system based on the actual production situation.

Conveyor System

Conveyors connect all workstations into one automated production flow.

Common conveyor types include:

• Roller conveyors
• Pallet conveyors
• Double-speed chain conveyors
• Circular indexing tables

The conveyor system keeps production stable and organized.

The most commonly used conveyor system is the double-speed chain conveyor, although roller conveyors or a combination of both are sometimes used, depending on customer requirements and the application scenario. This is our double-speed chain conveyor line : Double-Speed Chain Conveyor for Automated Assembly This is our roller conveyor: Roller Conveyor System for Assembly Line

PLC and HMI Control System

The entire machine is controlled by PLC and touchscreen HMI systems.

Operators can easily:

• Adjust parameters
• Monitor alarms
• Switch product models
• View production data
• Track machine status

This makes operation simpler even for new workers.

How the Machine Works

The water pump automatic assembly integrated machine follows a continuous automated process.

Step 1: Automatic Component Feeding

Parts are automatically sorted and transported to each assembly station.

Step 2: Product Positioning

Fixtures accurately position the pump housing for assembly.

High positioning accuracy ensures stable product quality.

Step 3: Bearing and Shaft Assembly

Servo press systems install bearings and shafts with controlled force and depth.

Step 4: Impeller and Seal Installation

Robots or assembly modules install seals and impellers automatically.

Step 5: Screw Tightening

Automatic screwdrivers complete fastening with torque monitoring.

Step 6: Leak and Functional Testing

The system performs pressure and performance testing to verify product quality.

Step 7: Vision Inspection

Cameras inspect the final product to ensure correct assembly.

Step 8: Automatic Unloading

Qualified products move to packaging or the next production stage automatically.

Defective products are separated automatically.

Problems Solved by Automated Water Pump Assembly

Many manufacturers still rely heavily on manual assembly. However, manual production creates several problems as production volume increases.

The automatic assembly integrated machine directly solves these issues.

Advantages Compared With Manual Assembly

Automated equipment significantly improves production efficiency and product stability; in the long run, this is a sound investment.

Key Pain Points Solved

Rising Labor Costs

Labor costs continue increasing every year.

Automation reduces dependence on large assembly teams and lowers operating costs over time.

Inconsistent Product Quality

Manual assembly quality varies between workers and shifts.

Automated systems maintain stable assembly force, positioning, and tightening accuracy.

Low Production Efficiency

Manual production cannot easily meet large order demands.

Automated assembly lines can run continuously for long periods with much higher output.

High Defect Rates

Human errors often cause:

• Missing components
• Loose screws
• Improper sealing
• Incorrect assembly

Automated inspection and testing reduce defective products significantly.

Difficult Production Management

Manual production makes it hard to collect real-time production data.

Integrated machines provide digital monitoring, traceability, and production statistics.

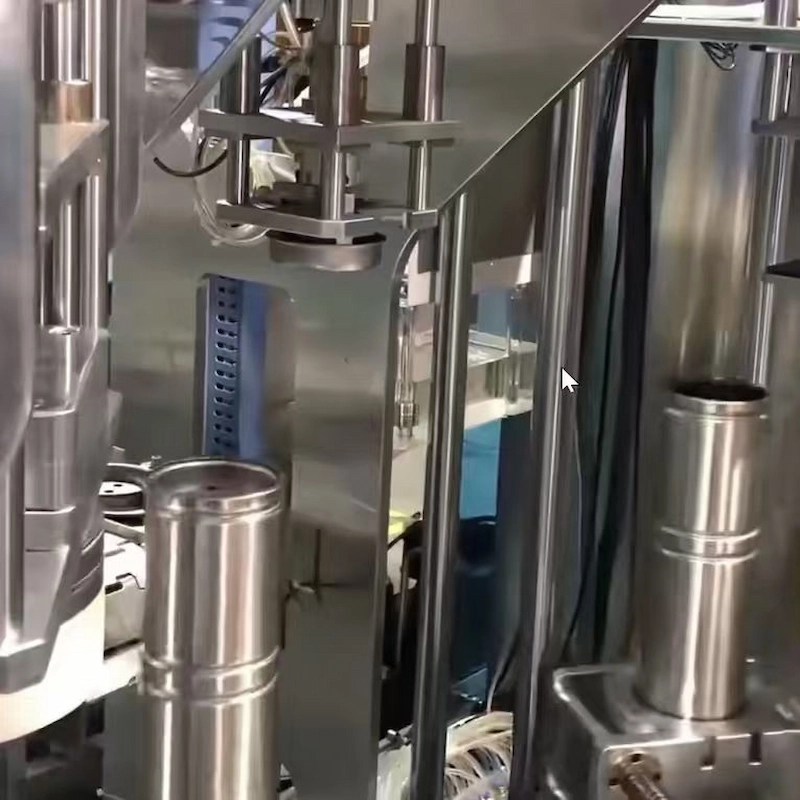

This is an automatic pressing module.

Typical Applications

Water pump automatic assembly integrated machines are widely used in:

• Automotive water pump manufacturing
• Electric coolant pump assembly
• Industrial pump production
• Agricultural pump assembly
• Household booster pump production
• New energy vehicle cooling systems
• HVAC pump manufacturing

Why Custom Non-Standard Design Matters

Different water pump products have different:

• Sizes
• Structures
• Production capacities
• Testing requirements
• Process flows

Standard machines often cannot fully meet production needs.

Custom non-standard automation allows manufacturers to optimize:

• Factory layout
• Production efficiency
• Product compatibility
• Future expansion
• Labor reduction goals

A customized integrated assembly machine delivers better long-term ROI than a basic standard machine.

This article elaborates on the importance of non-standard assembly lines：Why Are Non-Standard Production Lines Necessary?

Why Choose Our Water Pump Assembly Solution

We provide complete non-standard automation solutions for water pump manufacturing.

Our advantages include:

• Custom machine design based on your product
• Full assembly line integration
• Industrial robot integration
• Vision inspection systems
• Leak testing solutions
• Flexible production compatibility
• Stable long-term operation
• Global technical support

From single workstations to fully automated smart production lines, we help manufacturers improve efficiency, quality, and competitiveness.

Since our company was established 13 years ago, we have solved thousands of automation problems for our clients. We have experienced engineers and a production team to provide comprehensive support. If you need a water pump assembly machine or other automated assembly equipment, please contact us or our sales manager （What’s app :Sophia 15562680658）directly. We will provide you with professional, customized automation solutions.

Conclusion

The Water Pump Automatic Assembly Integrated Machine is transforming modern pump manufacturing.

By combining robotic assembly, precision control, intelligent inspection, and automated testing into one system, manufacturers can achieve:

• Higher efficiency
• Better quality consistency
• Lower labor costs
• Reduced defects
• Smarter production management

For companies facing growing competition and increasing production demands, automated assembly is one of the most effective ways to improve manufacturing performance and long-term profitability.
