Aluminum Profile Frame Accumulating Chain Conveyor
An Aluminum Profile Frame Accumulating Chain Conveyor is a modular conveyor system designed to transport, buffer, stop, and accumulate pallets, workpiece carriers, trays, and other products in automated production lines.
Unlike a standard chain conveyor, an accumulating chain conveyor allows products to stop temporarily while the conveyor chain continues running. This makes it possible to create independent buffer zones between workstations without stopping the entire production line.
The conveyor frame is built mainly from industrial aluminum profiles, while the conveying mechanism normally uses an accumulation roller chain, guide rails, sprockets, drive motor, and control components.
This design is especially useful for automated assembly lines, inspection systems, machining lines, robotic workstations, pallet handling systems, and material transfer applications.
The aluminum profile structure also makes the conveyor easier to modify, extend, and integrate with sensors, stoppers, robots, lifting units, and other automation equipment.
What Is an Accumulating Chain Conveyor?
An accumulating chain conveyor is a type of powered conveyor that provides both continuous transportation and temporary product accumulation.
In a normal conveyor, products generally move together with the conveying surface. If one downstream machine stops, products coming from upstream may also need to stop.
An accumulating conveyor works differently.
The drive system keeps the chain moving, while individual pallets or workpieces can stop at designated positions. The rollers or friction elements integrated into the chain reduce the relative movement between the chain and the stationary product.
This creates a buffer between production stations.
For example:
Loading → Accumulation → Assembly → Inspection → Testing → Unloading
If the inspection station temporarily stops, several pallets can remain in the accumulation area instead of forcing the upstream assembly station to stop immediately.
This principle is widely used in automated manufacturing where different processes operate at different cycle times. Commercial accumulating systems are commonly available with aluminum structural frames, internal chain returns, wear strips, pallet stoppers, sensors, and modular accessories.

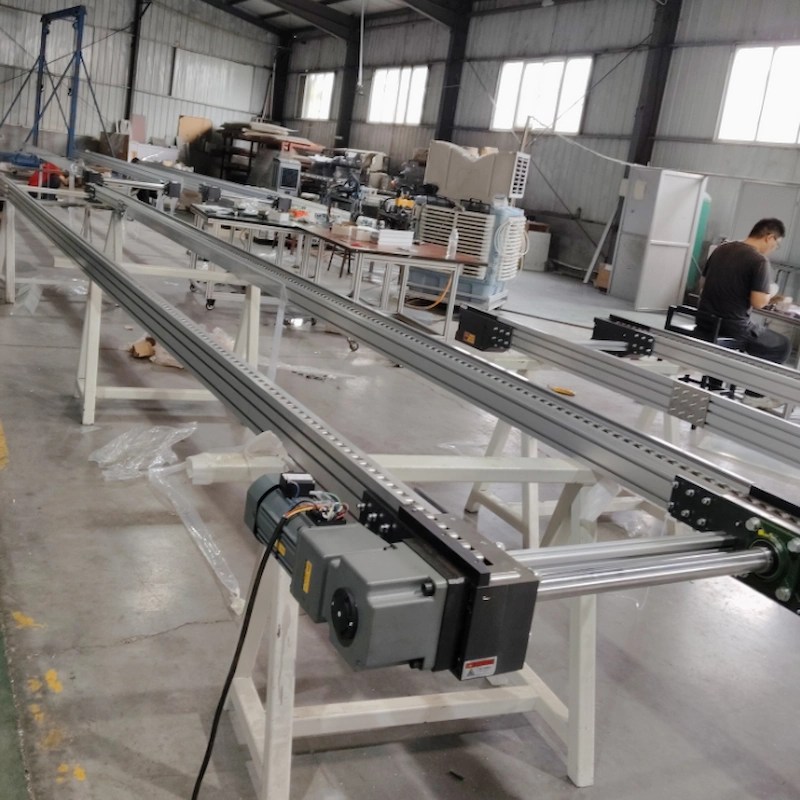

Above is our customized accumulating chain conveyor line for a fish tank manufacturer.
Key Features
| Feature | Description |
|---|---|
| Frame Material | Industrial aluminum profile |
| Conveyor Type | Accumulating roller chain conveyor |
| Drive | Motor + gearbox + sprocket |
| Chain | Steel or plastic accumulation roller chain |
| Product | Pallets, trays, workpiece carriers, components |
| Accumulation | Individual or multiple pallet accumulation |
| Control | PLC, sensors, stoppers, VFD/servo optional |
| Layout | Straight, multi-section, parallel or customized |
| Installation | Floor-mounted or integrated into production equipment |
| Surface | Anodized aluminum / customized treatment |
| Speed | Customized according to product and process |
| Load Capacity | Customized according to pallet and workpiece weight |
| Conveyor Length | Customized according to factory layout |
| Width | Customized according to product dimensions |
| Integration | Robots, lifts, inspection stations, MES, AGV/AMR, etc. |
Actual load, speed, chain type, conveyor width, and length should be selected according to the workpiece, pallet dimensions, accumulation pressure, and required cycle time.
For reference, commercial aluminum-frame accumulating conveyors cover a wide range of configurations. For example, mk lists aluminum-frame accumulating roller-chain systems with lengths up to around 18–20 m for individual conveyor sections, while heavier configurations can support substantially higher pallet loads.
Main Components
A complete Aluminum Profile Frame Accumulating Chain Conveyor normally consists of the following components.
1. Aluminum Profile Frame
The aluminum profile frame is the main structural body of the conveyor.
It supports the chain, drive system, workpiece, sensors, side guides, and accessories.
T-slot aluminum profiles are particularly useful because components can be mounted or repositioned without extensive welding or machining.
Compared with a traditional welded steel frame, an aluminum profile structure is easier to assemble, modify, and expand.

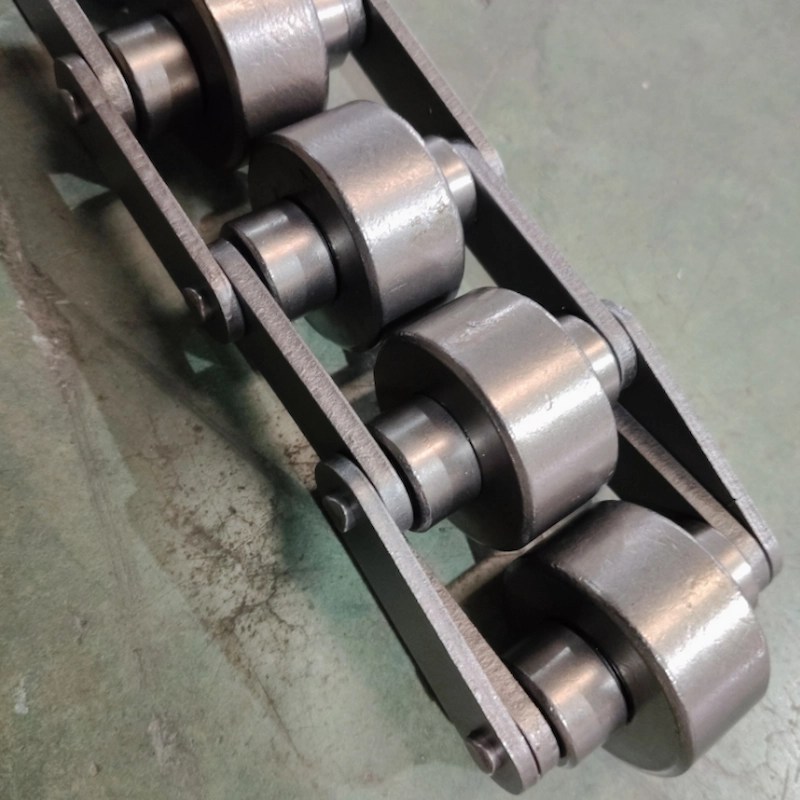

2. Accumulation Roller Chain
The accumulation roller chain is the core conveying component.
Unlike a simple transmission chain, an accumulation chain normally incorporates rollers that allow the product or pallet to remain stationary while the chain continues moving.
Steel and plastic roller configurations are available depending on load, noise, cleanliness, and application requirements.
3. Drive Sprocket
The drive sprocket transfers motor torque to the chain.
The sprocket size and chain pitch are selected according to load, speed, and required service life.
4. Motor and Gearbox
The motor provides the required conveying force.
A geared motor is commonly used for standard applications. Servo or variable-frequency drive control can be added when the production process requires more precise speed or positioning control.
5. Chain Guide / Wear Strip
Wear strips support and guide the chain during operation.
Common materials include UHMW-PE, engineering plastics, and other wear-resistant materials.
The guide system reduces friction, noise, and chain wear.
6. Tensioning Mechanism
The chain tensioning mechanism compensates for chain elongation and helps maintain stable operation.
A properly adjusted chain reduces vibration and prevents premature chain and sprocket wear.
7. Pallet or Workpiece Carrier
For automated production lines, products are often transported on dedicated pallets.
The pallet can include locating holes, fixtures, clamps, RFID tags, or other process-specific features.
This allows the same conveyor to transport a product through multiple assembly and inspection stations.

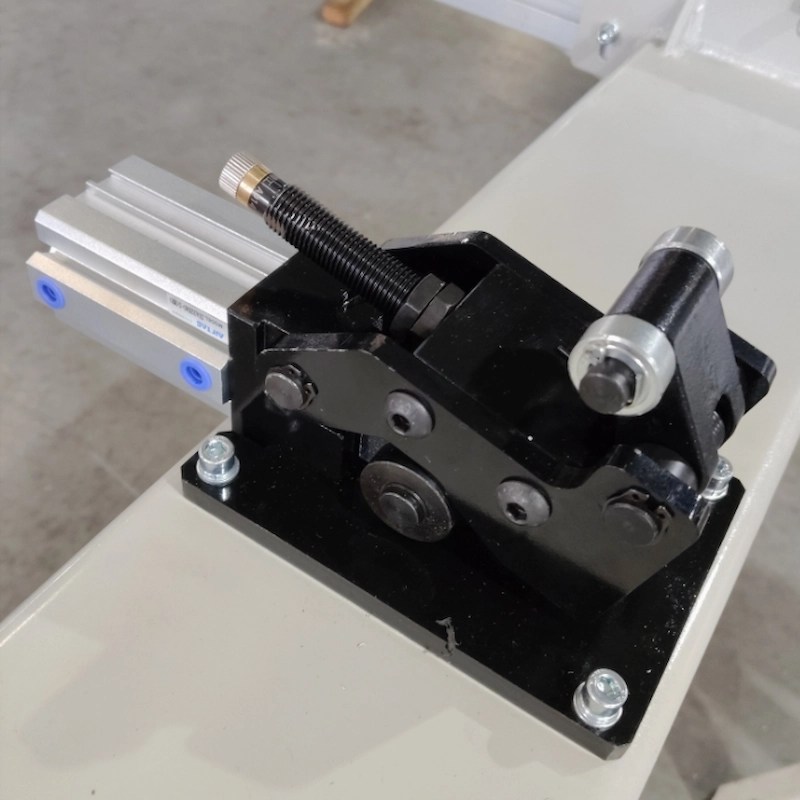

8. Stopper
A pneumatic or electric stopper can stop pallets at predetermined workstations.
For higher positioning requirements, the stopper can work together with a lifting and positioning unit.
9. Sensors
Photoelectric, proximity, or other sensors detect pallet presence and position.
The PLC uses these signals to determine when to start, stop, accumulate, transfer, or release products.
10. Control System
The control system normally includes:
- PLC
- VFD or servo drive
- Sensors
- Motor controller
- HMI
- Safety circuit
- Communication interface
For larger production systems, the conveyor can communicate with MES, WMS, robots, AGVs, inspection equipment, and other automation systems.
How Does an Accumulating Chain Conveyor Work?
The working process is relatively simple.
Step 1: Product Loading
A pallet or workpiece enters the conveyor from an upstream machine, manual station, robot, or another conveyor.
Step 2: Continuous Transportation
The motor drives the sprocket, and the sprocket moves the accumulation chain.
The pallet is transported along the conveyor.
Step 3: Position Detection
Sensors detect whether a pallet has reached a workstation or accumulation zone.
Step 4: Pallet Stopping
When the downstream station is occupied, a stopper moves into position and stops the pallet.
The chain can continue running underneath or around the stopped pallet.
Step 5: Accumulation
Additional pallets can enter the buffer zone and wait behind the previous pallet.
The accumulation function prevents the downstream process from immediately stopping the upstream process.
Step 6: Release
When the downstream station becomes available, the control system releases the first pallet.
The next pallet then moves forward automatically.
This creates a controlled FIFO-style material flow when the system is configured accordingly.
Check here to learn how the conveyor works:Aluminum Profile Frame Accumulating Chain Conveyor
How Is the Aluminum Profile Frame Conveyor Manufactured?
A reliable accumulating conveyor is not simply assembled from standard profiles. The conveyor should be designed around the actual production process.
1. Application Analysis
The first step is to understand:
- Product dimensions
- Product weight
- Pallet dimensions
- Required cycle time
- Conveyor length
- Required speed
- Accumulation quantity
- Stop positions
- Factory space
- Production environment
- Integration requirements
2. Mechanical Design
Engineers calculate the required conveyor width, chain type, motor power, sprocket size, frame structure, support spacing, and accumulation capacity.
For palletized systems, the pallet dimensions and bottom structure are particularly important.
3. Aluminum Profile Cutting
The selected aluminum profiles are cut according to the designed conveyor dimensions.
Precision cutting is important because frame misalignment can cause chain deviation, vibration, and uneven loading.
4. Frame Assembly
The aluminum profiles are connected using brackets, T-nuts, bolts, and dedicated connectors.
The frame is then checked for straightness, levelness, and dimensional accuracy.
5. Chain and Drive Installation
The drive shaft, sprockets, bearings, chain guides, accumulation chain, motor, and gearbox are installed.
The chain tension is adjusted before commissioning.
6. Electrical and Control Assembly
Sensors, motors, PLC, control cabinet, emergency stops, and communication interfaces are installed.
7. Trial Operation
The conveyor is tested under no-load and loaded conditions.
Engineers check:
- Chain tracking
- Noise
- Vibration
- Motor temperature
- Pallet stopping
- Accumulation pressure
- Sensor response
- Emergency stop
- Cycle time
8. Integration Testing
For a complete automation project, the conveyor is tested together with robots, assembly machines, inspection equipment, lifts, stoppers, and other equipment.
This step is important because a conveyor should not be treated as an isolated machine. It is normally one part of the entire production system.
Where Is an Aluminum Profile Accumulating Chain Conveyor Used?
Automotive Manufacturing
Used for transporting engine components, transmission parts, battery components, fixtures, and workpiece pallets.
The accumulation function allows different assembly stations to operate with different cycle times.
Electronics Manufacturing
Suitable for electronic components, housings, PCB-related assemblies, small appliances, and precision workpiece carriers.
The aluminum profile structure is particularly useful when the production line needs frequent modification.
New Energy Manufacturing
Accumulating conveyors can be integrated into battery module and pack assembly lines for controlled pallet transfer between assembly, testing, inspection, and handling stations.
Home Appliance Manufacturing
Used for transporting appliance housings, compressors, motors, assemblies, and workpiece fixtures.
Machinery Manufacturing
Suitable for machining, assembly, inspection, testing, and material buffering.
Automated Inspection Lines
The conveyor can stop a workpiece at a fixed inspection position so that a camera, sensor, laser measurement system, or robot can perform the required operation.
Robotic Workstations
Above is a robot workstation used for load cylinder head.
The conveyor can supply workpieces to robots for:
- Loading
- Unloading
- Assembly
- Screwdriving
- Gluing
- Welding
- Inspection
- Packaging
What Problems Does It Solve?
1. Different Cycle Times Between Stations
Not every production station finishes a product at the same speed.
Accumulation provides a buffer between processes.
2. Production Line Shutdowns
If one machine stops for several minutes, the entire upstream line does not necessarily have to stop immediately.
The accumulation area absorbs short-term production interruptions.
3. Manual Material Handling
Instead of operators repeatedly moving pallets between stations, the conveyor automatically transfers products through the production process.
4. Limited Factory Space
Aluminum profile conveyors can be designed in compact layouts and combined with lifts, transfers, turns, and parallel conveyor sections.
5. Difficult Line Modification
T-slot aluminum profiles make it relatively easy to relocate sensors, side guides, brackets, and other accessories.
6. Uncontrolled Workpiece Position
With stoppers, sensors, and positioning units, products can be delivered to repeatable processing locations.
For precision applications, commercial pallet systems can achieve positioning accuracy around ±0.5 mm or better depending on the system architecture and positioning mechanism.
Aluminum Profile Accumulating Chain Conveyor vs. Standard Chain Conveyor
| Item | Accumulating Chain Conveyor | Standard Chain Conveyor |
|---|---|---|
| Continuous conveying | Yes | Yes |
| Product accumulation | Yes | Limited |
| Individual pallet stopping | Yes | Usually requires additional design |
| Buffer function | Excellent | Basic |
| Suitable for assembly lines | Excellent | Good |
| Multi-station production | Excellent | Moderate |
| Back-pressure control | Low-pressure design available | Higher |
| Automation integration | Excellent | Good |
| Initial cost | Higher | Lower |
| System flexibility | High | Medium |
| Best application | Automated production lines | Simple material transfer |
The main advantage is not simply transportation speed. It is process separation.
The conveyor allows upstream and downstream operations to work more independently.
Competitive Analysis
The market includes aluminum-frame accumulating conveyors, heavy-duty steel-frame systems, free-flow pallet conveyors, belt accumulation conveyors, and roller-based accumulation systems.
| Solution | Main Advantage | Limitation | Best For |
|---|---|---|---|
| Aluminum Profile Accumulating Chain Conveyor | Lightweight, modular, customizable | Not ideal for every extreme heavy-load application | Automated assembly and material handling |
| Steel Heavy-Duty Chain Conveyor | High structural strength | Heavier and harder to modify | Heavy pallets and industrial loads |
| Accumulating Roller Conveyor | Good accumulation and smooth movement | Product bottom must suit roller support | Boxes, pallets, rigid products |
| Belt Accumulation Conveyor | Good for continuous product surfaces | Friction can affect accumulation | Cartons and packaged products |
| Free-Flow Pallet Conveyor | Excellent station-by-station control | Higher system complexity | Automated assembly and testing |
| Gravity Roller Conveyor | Simple and low energy consumption | Limited automation capability | Buffer and manual handling |
Free-flow pallet systems from manufacturers such as mk and other automation suppliers use accumulation principles to separate pallet movement from workstation processing. Some systems also provide stoppers, positioning units, pallet return systems, and modular conveyor configurations.
For heavy-duty applications, accumulating roller-chain conveyors can be designed for substantially higher loads than light-duty aluminum-frame systems. Therefore, selecting a conveyor should be based on payload, pallet dimensions, accumulation quantity, cycle time, and required positioning accuracy, rather than simply comparing conveyor prices.
Why Choose a Customized Aluminum Profile Frame Conveyor?
A standard conveyor may work for simple transportation. However, automated production lines often have different requirements at every workstation.
One station may require a stopper.
Another may require pallet positioning.
A third may need a robot to access the workpiece from the side.
An inspection station may require the pallet to stop within a defined position.
This is where a customized conveyor becomes more practical.
A customized system can integrate:
- Accumulation zones
- Pneumatic stoppers
- Lifting and positioning units
- Transfer units
- Turntables
- Side guides
- Barcode or RFID tracking
- Vision inspection
- Robot loading and unloading
- AGV/AMR interfaces
- MES communication
- Safety guarding
- Custom pallets and fixtures
The result is not just a conveyor. It becomes a material-flow platform for the production line.
If you are looking for a customized accumalating conveyor , pls contact us to get a tailor-made plan.
Aluminum Profile vs. Welded Steel Frame
| Factor | Aluminum Profile | Welded Steel |
|---|---|---|
| Weight | Lower | Higher |
| Assembly | Fast | More fabrication required |
| Modification | Easy | More difficult |
| Reconfiguration | Excellent | Limited |
| Corrosion resistance | Good | Depends on coating |
| Appearance | Clean and modular | Industrial |
| Custom mounting | Easy with T-slots | Requires drilling/welding |
| Heavy-load capability | Medium to high depending on design | High |
| Best application | Flexible automation | Heavy-duty equipment |
For applications involving very heavy pallets, large workpieces, or harsh environments, a steel structure may still be the better choice.
For flexible automated assembly and material-handling systems, aluminum profiles provide a strong balance between rigidity, weight, modularity, and installation efficiency.
How to Select the Right Accumulating Chain Conveyor
Before requesting a quotation, prepare the following information:
1. Product information
- Product length
- Product width
- Product height
- Product weight
- Product material
2. Pallet information
- Pallet size
- Pallet weight
- Bottom surface
- Positioning holes
- Fixture requirements
3. Production requirements
- Required cycle time
- Conveyor speed
- Number of workstations
- Accumulation quantity
- Required buffer time
4. Layout information
- Conveyor length
- Conveyor width
- Working height
- Available floor space
- Infeed and discharge directions
5. Automation requirements
- Robot integration
- Inspection system
- Stopper
- Lifting unit
- AGV/AMR
- PLC
- MES interface
- Safety requirements
This information allows the conveyor manufacturer to select the correct chain, motor, profile size, drive configuration, and control architecture instead of simply quoting a standard conveyor.
Custom Aluminum Profile Frame Accumulating Chain Conveyor
For manufacturers building automated production lines, the best conveyor is not necessarily the cheapest standard model.
The right system should match the product, process, production speed, workstation layout, and future automation requirements.
A customized Aluminum Profile Frame Accumulating Chain Conveyor can be designed around your actual production process, including conveyor dimensions, pallet size, accumulation zones, stopper positions, sensors, motor capacity, control system, and integration with robots or inspection equipment.
Whether you need a single accumulation conveyor or a complete pallet transfer system, the design should be evaluated as part of the entire production line.
Custom options include:
- Conveyor length and width
- Aluminum profile size
- Chain type
- Motor and gearbox
- Pallet size
- Load capacity
- Conveyor speed
- Number of accumulation zones
- Stopper and positioning units
- Sensors
- PLC and HMI
- Safety guarding
- Robot integration
- MES communication
- OEM/ODM engineering
Final Takeaway
An Aluminum Profile Frame Accumulating Chain Conveyor is a practical solution when a production line needs more than simple product transportation.
Its main value is the ability to transport, buffer, stop, and release products independently, helping different manufacturing processes operate with less interference.
For automated assembly, inspection, machining, electronics, automotive, new energy, and material-handling applications, the combination of an aluminum modular frame and accumulation chain provides a flexible platform that can be expanded as the production line develops.
