What Is an Automated Paper Sheet Feeding Machine?

An automated paper sheet feeding machine is a material handling machine that removes individual sheets from a stack and feeds them into a conveyor, processing machine, forming machine, printing machine, packaging line, pulper, or other downstream equipment.

The basic process is:

Sheet Stack → Positioning → Sheet Separation → Single-Sheet Pickup → Conveying → Downstream Processing

The machine can be configured for different materials, including:

• Paper sheets
• Pulp board sheets
• Molded fiber sheets
• Cardboard
• Fiberboard
• Corrugated board
• Packaging sheets
• Industrial paper products
• Other customized flat materials

The feeding method is selected according to the physical characteristics of the material. Thin paper may require vacuum or friction feeding, while thick or compressed pulp boards may require mechanical separation, air assistance, or a combination of technologies.

This makes the machine suitable for both standard sheet feeding and non-standard automated feeding applications.

Why Automate Paper Sheet Feeding?

Manual sheet feeding looks simple, but it becomes inefficient when production volume increases.

Operators need to repeatedly bend, lift, separate, and position sheets. Differences in feeding speed can also create interruptions downstream.

Typical problems include:

Manual Feeding Problem	Production Impact
Repetitive manual handling	Operator fatigue
Inconsistent feeding speed	Unstable production cycle
Two or more sheets fed together	Machine jams or processing errors
Missed sheets	Production interruptions
Manual alignment	Positioning errors
High labor dependency	Higher operating cost
Limited feeding speed	Lower production capacity

An automated paper sheet feeder changes this process from a labor-intensive operation into a controlled mechanical process.

The operator mainly needs to load the sheet stack and monitor the machine rather than continuously handle individual sheets.

How Does the Automated Paper Sheet Feeding Machine Work?

The exact operating sequence depends on the material and application, but a typical system works as follows.

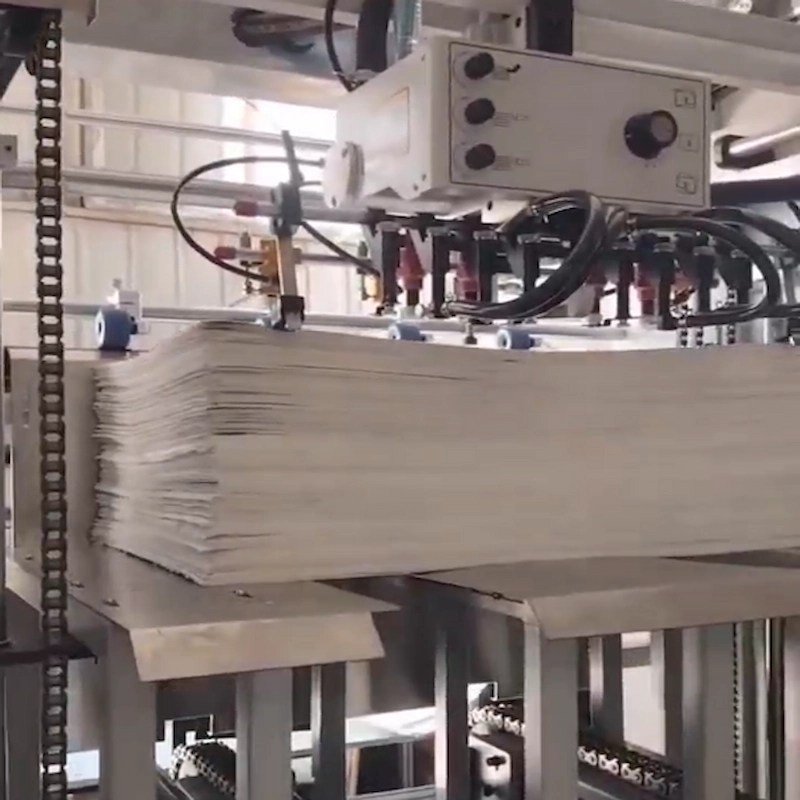

1. Load the Paper Sheet Stack

The operator places a stack of paper, pulp board, cardboard, or other sheet material onto the loading platform.

For heavy materials, the machine can be equipped with a lifting platform or other mechanical loading solution.

2. Automatic Stack Positioning

Sensors and mechanical guides help position the stack correctly.

Proper alignment is important because the separation mechanism needs a stable reference position to pick the top sheet accurately.

3. Sheet Separation

The separation mechanism moves toward the top of the stack.

Depending on the material, the system may use:

• Vacuum suction cups
• Friction rollers
• Separation wheels
• Mechanical grippers
• Air blowing
• Vibration assistance
• Servo-driven lifting mechanisms

For difficult materials, several separation methods can be combined.

4. Single-Sheet Pickup

The machine picks up or separates one sheet from the stack.

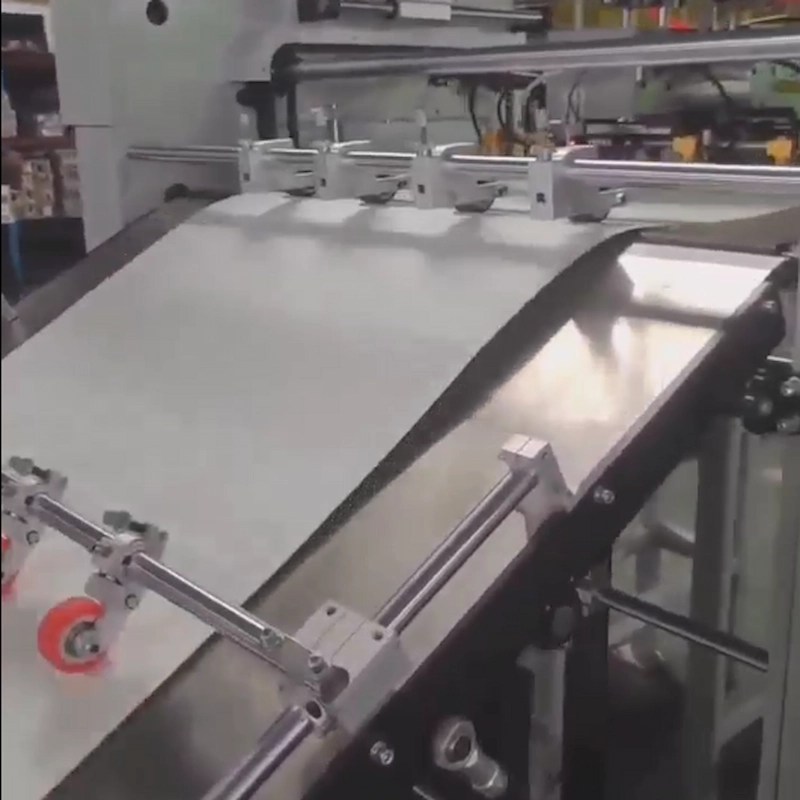

5. Sheet Transfer

After separation, the sheet is transferred onto a conveyor or directly into the next machine.

The conveyor speed can be synchronized with the downstream production equipment.

6. Continuous Feeding

Once the first sheet has been transferred successfully, the system repeats the cycle automatically.

The PLC controls the sequence, timing, sensors, motors, and alarms to maintain continuous operation.

Main Components of an Automated Paper Sheet Feeding Machine

A reliable automatic paper feeder is not simply a motor and conveyor. It is an integrated mechanical and electrical system.

1. Sheet Loading Platform

The loading platform supports the sheet stack.

Depending on the application, it can include:

• Heavy-duty steel frame
• Lifting mechanism
• Adjustable positioning guides
• Stack alignment system
• Pallet support
• Height adjustment mechanism

The platform can be customized according to the maximum stack weight and dimensions.

2. Sheet Separation Mechanism

This is one of the most important parts of the machine.

Its job is to separate the upper sheet from the remaining stack without damaging the material.

Possible technologies include:

Separation Method	Suitable Application
Vacuum suction	Paper and relatively flat sheets
Friction roller	Continuous sheet feeding
Mechanical gripper	Thick or rigid sheets
Air-assisted separation	Sheets with strong adhesion
Vibration separation	Tightly compressed stacks
Combined system	Difficult or variable materials

The correct separation technology depends on sheet thickness, surface condition, moisture, stiffness, weight, and stacking pressure.

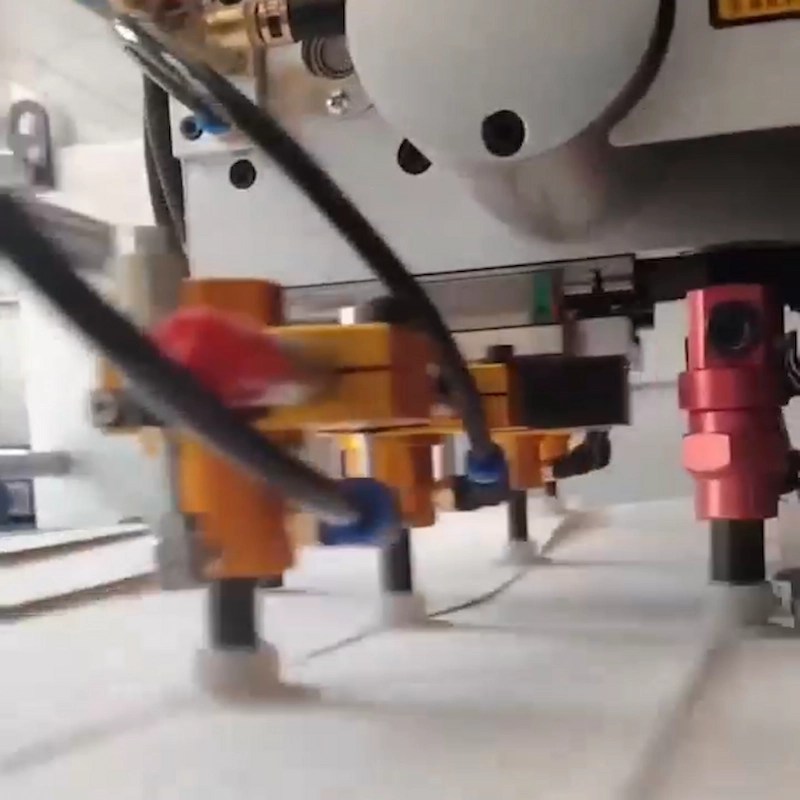

3. Vacuum System

For vacuum-based feeding systems, the vacuum unit creates suction through vacuum cups.

The system can include:

• Vacuum pump
• Vacuum cups
• Vacuum pipes
• Solenoid valves
• Pressure sensors
• Vacuum filters

Vacuum feeding is particularly useful when the sheet needs to be lifted without excessive mechanical contact.

4. Friction Feeding Unit

Friction wheels or rollers help separate and move sheets.

The roller material and pressure can be selected according to the sheet surface.

The goal is to provide enough traction to move one sheet without pulling multiple sheets simultaneously.

5. Conveyor System

Once the sheet is separated, a conveyor transports it to the next process.

Depending on the application, the conveyor may use:

• Belt conveyor
• Roller conveyor
• PU belt
• PVC belt
• Customized friction belt

The conveyor can also include side guides or positioning mechanisms to maintain sheet alignment.

6. Sensors

Sensors provide feedback to the control system.

Typical sensors include:

• Photoelectric sensors
• Proximity sensors
• Position sensors
• Stack-height sensors
• Vacuum pressure sensors
• Sheet detection sensors

These sensors help the machine determine whether a sheet has been picked, transferred, or positioned correctly.

7. PLC Control System

The PLC acts as the control center of the machine.

It controls:

• Feeding sequence
• Motor operation
• Vacuum timing
• Separation cycles
• Conveyor speed
• Sensor feedback
• Alarm conditions
• Emergency stop functions

An HMI touchscreen can also be added for parameter adjustment and production monitoring.

8. Safety System

Industrial sheet feeding equipment should include appropriate safety protection.

Depending on the application, safety features may include:

• Emergency stop buttons
• Safety guards
• Safety switches
• Light curtains
• Overload protection
• Motor protection
• Jam detection

Safety design is especially important when the machine is integrated into a complete automated production line.

Technical Specifications

The following specifications are typical configuration ranges. Final parameters are customized according to the customer’s material and production requirements.

Parameter	Typical Specification
Equipment Type	Automated Paper Sheet Feeding Machine
Material	Paper, pulp board, cardboard, fiber sheet, etc.
Sheet Size	Customized
Sheet Thickness	Customized according to material
Stack Height	Up to approx. 800 mm, customizable
Stack Weight	Up to approx. 300 kg, customizable
Feeding Speed	Up to approx. 90 cycles/min, application dependent
Feeding Method	Vacuum / friction / mechanical / combined
Control System	PLC + HMI
Voltage	220V / 380V, customizable
Conveyor	Belt / roller / customized
Detection	Photoelectric and position sensors
Safety	Emergency stop, guards, overload protection
OEM/ODM	Available
Installation	Standalone or production-line integration

Actual performance depends on sheet size, thickness, material characteristics, stack condition, and required cycle time.

Applications of Automated Paper Sheet Feeding Machines

Automated sheet feeders can be used in many industries because the feeding mechanism can be customized for different materials.

Pulp Molding Production

Pulp board feeding is one of the important applications.

The machine can automatically separate compressed pulp sheets and feed them into a pulping or preparation system.

This is useful for manufacturers producing:

• Molded pulp packaging
• Paper trays
• Fiber packaging
• Paper tableware
• Protective packaging

Paper Processing

Paper processing lines often require sheets to be supplied at a stable rate.

An automatic feeder can be integrated with cutting, forming, printing, stacking, or other processing equipment.

Packaging Production

Cardboard and paperboard sheets can be automatically supplied to packaging machinery.

This reduces the need for operators to manually position each sheet.

Industrial Fiber Products

Manufacturers producing fiberboard, protective sheets, insulation-related materials, or other industrial sheet products can use customized feeding equipment to automate repetitive material handling.

Printing and Converting

For suitable sheet materials, automatic feeding systems can supply sheets to printing, coating, cutting, laminating, or converting equipment.

The feeding speed and positioning accuracy can be matched to the requirements of the downstream machine.

What Problems Does an Automated Paper Feeder Solve?

Reduce Manual Labor

Instead of continuously picking individual sheets, operators can focus on loading, monitoring, inspection, and other higher-value tasks.

Improve Feeding Consistency

The machine follows a programmed feeding cycle rather than relying on different operators to maintain the same manual speed.

Reduce Double-Sheet Feeding

Double feeding can cause jams and damage downstream equipment.

A properly designed separation mechanism and detection system can significantly reduce this risk.

Reduce Production Interruptions

Continuous automatic feeding allows the upstream material supply to better match the downstream machine cycle.

Improve Worker Safety

Operators have less direct contact with heavy stacks and repetitive sheet handling.

Support Production-Line Automation

The feeder can be integrated with conveyors, robots, PLC systems, MES systems, and other automation equipment.

Automated Feeding vs Manual Feeding

Feature	Manual Feeding	Automated Paper Sheet Feeding
Labor Requirement	High	Low
Feeding Consistency	Operator dependent	Programmable
Continuous Operation	Limited	Suitable
Double-Sheet Risk	Relatively high	Reduced with detection
Material Handling	Manual	Automatic
Production Speed	Limited by operators	Machine controlled
Worker Fatigue	High	Lower
Line Integration	Limited	Excellent
Data Monitoring	Limited	Available
Scalability	Limited	High

Automation does not necessarily mean eliminating every operator. In many factories, the more practical solution is to move workers from repetitive feeding tasks to loading, inspection, quality control, and production management.

Standard Feeder or Customized Machine?

A standard paper feeder may be sufficient when the material dimensions and production conditions are fixed.

However, many industrial applications have non-standard requirements.

For example:

• Oversized sheets
• Very thick pulp boards
• Lightweight flexible paper
• High-density fiber sheets
• Multiple sheet sizes
• Irregular stack dimensions
• High-speed feeding
• Limited installation space
• Existing production-line interfaces

In these cases, a custom automated paper sheet feeding machine can provide a better solution.

The machine can be designed around the actual material and production process instead of forcing the factory to change its existing workflow.Tell us your use case , we will evaluate and design an equipment that is suitable for you.

Integration With Existing Production Lines

The automated paper sheet feeding machine can be designed as a standalone unit or as part of a complete automation system.

Possible connections include:

Sheet Storage → Automated Feeder → Conveyor → Processing Machine

or:

Pallet/Stack → Sheet Feeder → Conveyor → Robot → Production Equipment

For pulp processing:

Pulp Board Stack → Automatic Separator → Conveyor → Hydrapulper → Pulp Preparation System

PLC communication and sensors can be used to synchronize the feeder with downstream equipment.

For larger automation projects, the system can also be connected to MES or factory-level production management systems.

Why Choose JOIN Industrial?

JOIN Industrial specializes in non-standard automation equipment and customized production-line integration.

We specialize in providing industrial production solutions to our customers.If you are looking for other equipments or assembly line,pls feel free to contact us. We have been in this area over 13years.We have professional engineers to provide technical support.

The machine can also be combined with conveyors, robots, inspection equipment, loading systems, and other automated equipment to create a complete production solution.

Final Takeaway

An Automated Paper Sheet Feeding Machine is more than an automatic sheet picker.

It is a material-handling system designed to make sheet feeding faster, more consistent, safer, and easier to integrate into automated production.

For paper, pulp board, cardboard, fiberboard, and similar materials, the right combination of sheet separation, vacuum or mechanical pickup, sensors, conveyor technology, and PLC control can eliminate many of the problems associated with manual feeding.

For manufacturers handling large quantities of sheets every day, automation can reduce repetitive labor, improve production consistency, minimize feeding interruptions, and create a more reliable connection between material storage and downstream processing.

If your sheet dimensions, material, stack weight, feeding speed, or production-line layout are non-standard, a customized solution is usually more practical than a one-size-fits-all feeder.
