Empty Pallet Dispenser

 What Is an Empty Pallet Dispenser?

An Empty Pallet Dispenser is an automated pallet handling machine that stores a stack of empty pallets and releases one pallet at a time to a conveyor, palletizing station, robot, AGV, or other downstream equipment.It is also called a pallet dispenser, pallet destacker, or empty pallet magazine, is designed to automatically separate individual pallets from a stacked group.

Instead of asking an operator to repeatedly move and position empty pallets, the dispenser automatically separates pallets from the stack and feeds them into the production or logistics process. This makes it an important component in automated palletizing, packaging lines, warehouse automation, and material handling systems.

A typical system follows a simple sequence:

Pallet Stack → Pallet Separation → Single Pallet → Conveyor → Palletizing/Production Station

The machine stores multiple empty pallets vertically. When the downstream system requests a pallet, sensors detect the requirement and the dispenser activates its lifting and separation mechanism. One pallet is released onto the conveyor while the remaining pallets stay securely supported.

Many industrial dispensers are designed to hold approximately 10–20 pallets, although the capacity can be customized according to pallet dimensions, production speed, and available installation space.

For high-volume production, a larger magazine can reduce the frequency of pallet replenishment and help maintain continuous operation.

Main Components of an Empty Pallet Dispenser

Although the exact design depends on the pallet type and production line, a typical empty pallet dispenser consists of the following components:

The lifting and clamping mechanisms can be motor-driven, servo-driven, pneumatic, or a combination depending on the required performance.

Types of Empty Pallet Dispensers

Different production environments require different pallet dispensing mechanisms. The main types include the following.

1. Magazine-Type Empty Pallet Dispenser

The magazine-type dispenser is one of the most common designs.

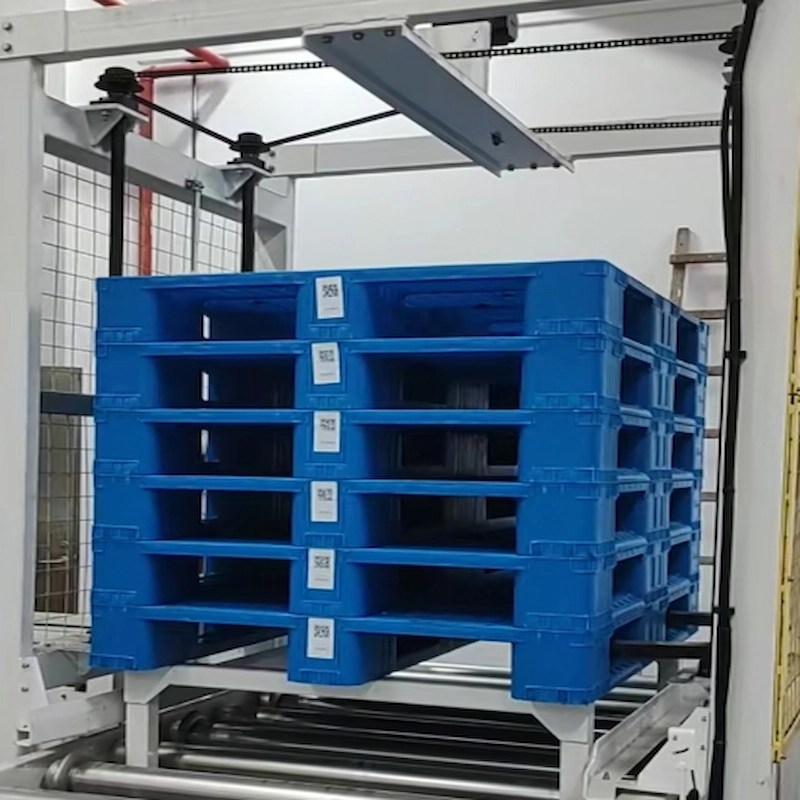

A vertical magazine stores a stack of empty pallets. A forklift or pallet truck loads the pallet stack into the magazine, and the machine automatically separates individual pallets and transfers them to the outfeed conveyor.

Advantages:

• Simple mechanical structure
• High reliability
• Compact footprint
• Easy integration with conveyors
• Suitable for continuous palletizing
• Easy to customize for different pallet dimensions

This type is particularly suitable when the production line mainly uses one standard pallet size.

2. Inline Empty Pallet Dispenser

An inline pallet dispenser is installed directly into the pallet conveyor.

The pallet stack is positioned within or above the conveyor system. The machine separates one pallet and releases it directly onto the conveying surface.

This configuration is useful when space is limited or when the dispenser needs to become part of a continuous automated pallet handling line.

3. Bottom-Dispensing Pallet Dispenser

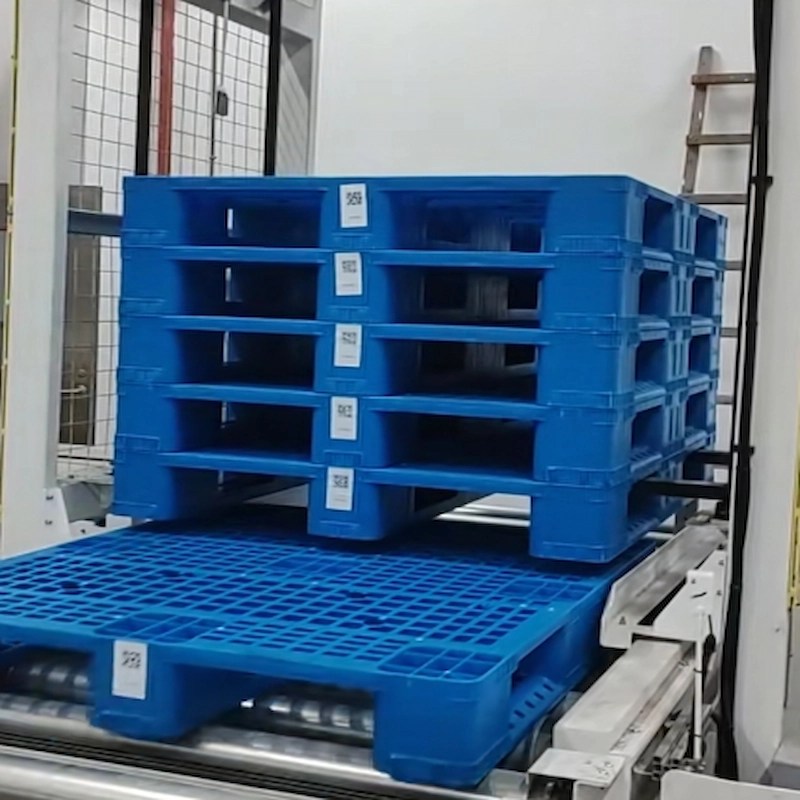

In a bottom-dispensing design, the separation mechanism supports the pallets above the bottom pallet.

The bottom pallet is then transferred away by the conveyor. After the pallet leaves the stack, the remaining pallets move down and the next pallet becomes available.

This is a common mechanical principle because it allows the dispenser to continuously release individual pallets from the bottom of the stack.

4. Top-Dispensing Pallet Dispenser

A top-dispensing system separates the pallet from the upper part of the stack.

The mechanism lifts or grips the stack and removes the top pallet before transferring it to the downstream station.

This configuration can be useful for specific pallet conditions or customized production layouts where bottom dispensing is not suitable.

5. Robotic Pallet Dispenser

A robotic pallet dispenser uses an industrial robot or collaborative robot to pick pallets individually from a stack.

This approach provides greater flexibility for:

• Multiple pallet sizes
• Different pallet materials
• Irregular pallet layouts
• Mixed pallet production
• Flexible production lines

However, robotic systems normally require more sophisticated programming, safety systems, and integration than a dedicated mechanical dispenser.

6. Automatic Pallet Stacker/Destacker

Some systems combine dispensing and stacking functions.

Instead of only taking pallets from a stack, the equipment can automatically stack or destack empty pallets depending on the production requirement.

These systems are useful in warehouses, automated palletizing areas, workstations, and pallet buffer zones.What type of pallet dispenser are you looking for ?Or you dont know what kind of machine you need? Don’t worry and tell us your situation.We will give you a professional advice and help you develop a complete plan.

How Does an Empty Pallet Dispenser Work?

The operating process is relatively simple but requires precise mechanical control.

Step 1: Load Empty Pallets

A forklift or pallet truck loads a stack of empty pallets into the dispenser magazine.

Depending on the design, pallets may be loaded from the front, side, or rear.

Step 2: Detect the Pallet Stack

Photoelectric sensors and position sensors detect the presence and height of the pallet stack.

The PLC checks whether the pallet stack is correctly positioned and whether the downstream conveyor is ready.

Step 3: Receive a Pallet Request

When the palletizing machine, robot, or conveyor requires a new pallet, the control system sends a dispensing command.

For an integrated production line, this signal can come from the palletizer, PLC, WMS, MES, or conveyor control system.

Step 4: Lift and Separate the Stack

The lifting mechanism moves the pallet stack to the correct position.

Separation fingers, forks, clamps, or pneumatic mechanisms engage the pallets and isolate the pallet that needs to be released.

Step 5: Release One Empty Pallet

The selected pallet is released onto the conveyor.

The separation mechanism continues supporting the remaining pallets so that multiple pallets do not fall together.

Step 6: Transfer the Pallet

The conveyor transports the empty pallet to the palletizing station.

For example:

Empty Pallet Dispenser → Roller Conveyor → Robot Palletizer → Filled Pallet → Stretch Wrapper

Step 7: Repeat Automatically

Once the pallet has left the dispenser, the system detects the next pallet position and prepares for the next dispensing cycle.

This automatic cycle allows the palletizer to operate continuously with minimal operator intervention.

Applications of Empty Pallet Dispensers

Empty pallet dispensers are widely used wherever pallets must be automatically supplied to a production or logistics process.

Automated Palletizing Lines

This is one of the most common applications.

The dispenser continuously supplies empty pallets to a robotic or conventional palletizer. When one pallet is completely loaded, another empty pallet can be supplied automatically.

This helps prevent the palletizer from stopping because an operator has not positioned the next pallet.

Food and Beverage Production

Food, beverage, and consumer goods factories often require continuous palletizing at the end of packaging lines.

An automatic dispenser can supply pallets to:Carton palletizers,Bag palletizers,Case packing lines,Bottle packaging lines,Beverage production linesand Food packaging systems.

Logistics and Warehousing

Empty pallets are frequently required at warehouse workstations, sorting areas, order fulfillment stations, and automated storage systems.

A pallet dispenser can act as an empty pallet buffer, supplying pallets when required while reducing manual movement.

E-Commerce and Distribution Centers

High-throughput distribution centers need fast and consistent pallet handling.

An empty pallet dispenser can be integrated with:Roller conveyors,Chain conveyors,Palletizers,AGVs,AMRs,Automated storage systems and Warehouse management systems.

Automotive Manufacturing

Automotive factories use pallets and carriers for components, assemblies, and finished products.

A customized dispenser can be designed around specific pallet dimensions and connected to automated material handling equipment.

New Energy and Battery Manufacturing

Battery and new-energy production lines increasingly use automated material handling.

Customized pallet dispensing systems can provide empty pallets or carriers to automated loading, assembly, inspection, and transportation processes.

What Problems Does an Empty Pallet Dispenser Solve?

1. Manual Pallet Handling

Manually moving pallets is repetitive and physically demanding.

An automated dispenser performs the repetitive dispensing operation without requiring an operator to manually move every pallet.

2. Production Line Interruptions

If an operator has to manually place an empty pallet every time the palletizer finishes a load, the process can become a bottleneck.

Automatic pallet dispensing keeps the pallet supply synchronized with the production cycle.

3. Inconsistent Pallet Positioning

Manual pallet placement can result in:

• Misalignment
• Incorrect orientation
• Inconsistent positioning
• Conveyor jams

Sensors and mechanical guides provide controlled pallet positioning.

4. Limited Floor Space

Stacking pallets randomly on the factory floor can consume valuable space.

A vertical magazine organizes multiple pallets in a controlled area and can reduce unnecessary floor occupancy.

5. Worker Safety

Empty pallets are heavy and awkward to handle.

Automating pallet movement reduces repetitive manual lifting and minimizes the risk associated with handling pallets.

6. Pallet Damage

Forklift impacts and careless manual handling can damage pallets.

A controlled dispensing mechanism can reduce unnecessary impacts and uncontrolled pallet movement.

Advantages of an Empty Pallet Dispenser Compared with Manual Handling

Custom Empty Pallet Dispenser for Non-Standard Automation

Not every factory uses the same pallet.

Pallet dimensions, materials, weights, entry direction, stack height, production speed, and conveyor layout can all be different.

A standard dispenser may therefore not fit every application.

A custom empty pallet dispenser can be engineered around:

• Pallet size and weight
• Wooden or plastic pallets
• Two-way or four-way entry pallets
• GMA, EUR/EPAL, CHEP, or custom pallets
• Single or multiple pallet sizes
• Required magazine capacity
• Conveyor height
• Dispensing direction
• Production cycle time
• Available installation space
• Forklift loading method
• Robot or AGV interface
• WMS/MES communication
• Safety requirements

For example, customized pallet dispensers can be designed for different pallet types and integrated into automated palletizing systems rather than requiring the production line to adapt to a fixed machine configuration.

Key Factors When Choosing an Empty Pallet Dispenser

Before selecting a machine, manufacturers should consider five key factors:

1. Pallet dimensions
Length, width, height, weight, and pallet entry direction determine the mechanical design.

2. Pallet material
Wooden and plastic pallets can have different surface characteristics and structural behavior.

3. Required capacity
A higher magazine capacity means fewer manual replenishment operations.

4. Production speed
The dispenser cycle must match the palletizer and conveyor throughput.

5. Integration requirements
For automated factories, the dispenser should communicate reliably with PLCs, robots, conveyors, AGVs, WMS, and MES.

Conclusion

An Empty Pallet Dispenser is a practical automation solution for automatically storing, separating, and supplying empty pallets.

Its main value is not simply replacing one manual operation. It creates a controlled pallet flow between pallet storage and the production process.

For automated palletizing and material handling applications, the right dispenser can help reduce manual labor, improve pallet positioning, reduce production interruptions, save floor space, improve workplace safety, and support continuous automated operation.

For factories with unusual pallet sizes, multiple pallet types, restricted installation space, or complex conveyor and robot interfaces, a non-standard/custom empty pallet dispenser is often a better solution than forcing a standard machine into an unsuitable production line.
