Non-Standard Pallet Dispenser in Equipment Integration
| Product Name | Non-Standard Pallet Dispenser in Equipment Integration |
| MOQ | 1 |
| Size | Customized |
| Place of origin | Shandong, China |
| Color | Customized |
| Price | $5000-$10000 (the final price will depend on the actual configuration) |
What Is a Non-Standard Pallet Dispenser?
A non-standard pallet dispenser is an automated pallet handling machine designed to store a stack of empty pallets and release them one by one into a production, packaging, warehouse, or palletizing system.
Unlike a standard pallet dispenser, a non-standard model is engineered around the customer’s actual pallet dimensions, pallet materials, production speed, conveyor layout, available floor space, and automation requirements.
In an integrated automation system, the pallet dispenser is not an isolated machine. It normally works together with pallet conveyors, robotic palletizers, AGVs/AMRs, pallet elevators, packaging equipment, wrapping machines, PLC controls, and warehouse management systems.
The basic function is simple:
Load a stack of pallets → separate one pallet → transfer it to the conveyor → position it for the next process → repeat automatically.
Commercial pallet dispensers generally use mechanical lifting, fork, pneumatic, hydraulic, or electric mechanisms to separate pallets from a stack.
For non-standard applications, the machine can also be designed for unusual pallet sizes, multiple pallet specifications, limited installation space, high-throughput production lines, or special integration requirements.
Why Choose a Non-Standard Pallet Dispenser?
Standard pallet dispensers are usually designed around common pallet sizes and relatively fixed operating conditions. However, many manufacturing plants do not use only standard pallets.
A production line may require:
- Custom pallet dimensions
- Wooden, plastic, metal, or composite pallets
- Multiple pallet sizes
- Different pallet heights
- Heavy pallet loads
- High-frequency pallet feeding
- Limited installation space
- Side-entry or end-entry loading
- Integration with existing conveyors
- Robot or AGV interaction
- Automatic pallet counting
- MES/WMS communication
- Automatic fault detection
A non-standard pallet dispenser allows these requirements to be incorporated into one equipment integration project instead of forcing the production line to adapt to a standard machine.
Main Components of a Non-Standard Pallet Dispenser
The exact configuration depends on the application, but a typical system includes the following components.
| Component | Main Function |
|---|---|
| Machine Frame | Supports the pallet stack and operating mechanisms |
| Pallet Magazine | Stores multiple empty pallets |
| Lifting Mechanism | Raises or lowers the pallet stack |
| Pallet Separation Mechanism | Separates one pallet from the stack |
| Fork or Gripper Assembly | Holds and releases pallets during dispensing |
| Pallet Conveyor | Transfers the released pallet to the next station |
| Guide Rails | Keeps pallets aligned during movement |
| Sensors | Detect pallet position, height, and presence |
| Motor / Servo / Pneumatic System | Provides mechanical movement |
| PLC Controller | Controls the complete operating sequence |
| HMI | Allows operators to monitor and adjust the machine |
| Safety Guarding | Protects operators from moving components |
| Safety Sensors | Detect access, abnormal conditions, and pallet position |
| Communication Interface | Connects the dispenser with conveyors, robots, MES, WMS, or other equipment |
Industrial pallet handling systems commonly combine the dispenser with chain or roller conveyors and sensor-based controls.
How Does a Non-Standard Pallet Dispenser Work?
The working process can be divided into several steps.
1. Pallet Loading
A forklift, pallet truck, AGV, or another material-handling device places a stack of empty pallets into the dispenser magazine.
The magazine is designed according to the pallet length, width, height, weight, and entry direction.
2. Pallet Position Detection
Photoelectric sensors, proximity sensors, limit switches, or other detection devices confirm the pallet position.
The control system checks whether the stack is correctly positioned before starting the dispensing cycle.
3. Pallet Stack Holding
The holding mechanism supports the pallet stack while the machine prepares to release one pallet.
Depending on the design, the mechanism may use lifting forks, mechanical fingers, pneumatic cylinders, hydraulic cylinders, or electric actuators.

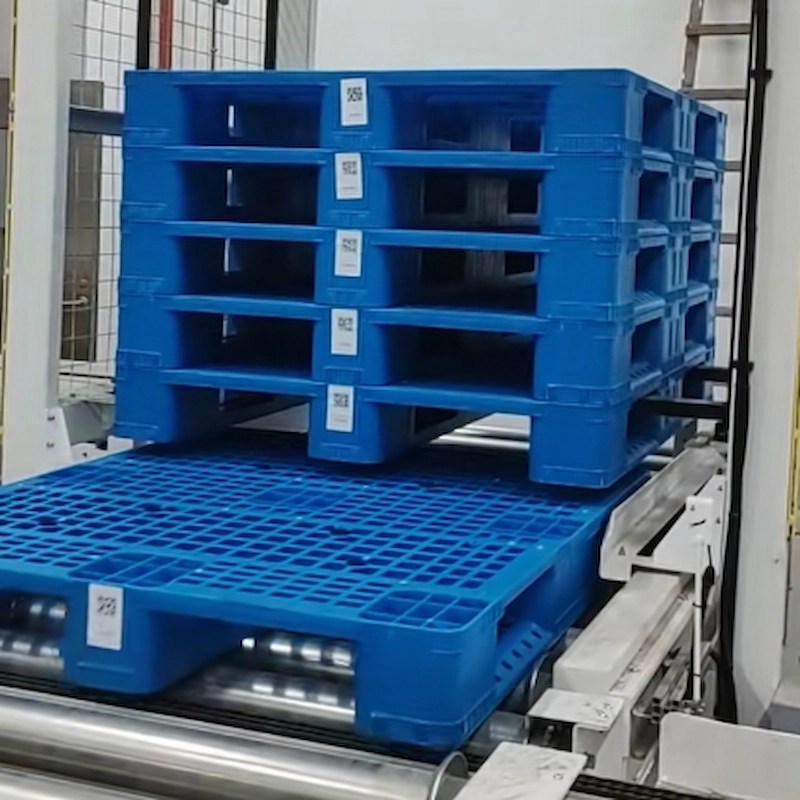

4. Single-Pallet Separation
The key operation is singulation.
The machine separates one pallet from the stack while keeping the remaining pallets stable.
This prevents two pallets from being released at the same time, which is critical for automated palletizing and conveyor systems.
5. Pallet Transfer
The separated pallet is lowered or transferred onto the discharge conveyor.
A chain conveyor, roller conveyor, or another customized transfer mechanism can then move the pallet toward the palletizing or production station.
6. Position Confirmation
Sensors verify that the pallet has reached the correct position.
If the downstream equipment is ready, the pallet continues to the next process.
If the downstream system is occupied, the pallet dispenser waits for a release signal.
7. Automatic Cycle Repeat
The PLC receives the next demand signal and starts another dispensing cycle.
This creates a continuous automatic pallet supply without requiring an operator to manually insert every pallet.
Modern pallet dispensers can communicate with downstream palletizers and conveyors so that pallets are supplied according to actual production demand.
Equipment Integration Structure
A non-standard pallet dispenser becomes more valuable when integrated into a complete material-handling system.
A typical production sequence is:
Pallet Stack → Non-Standard Pallet Dispenser → Pallet Conveyor → Palletizing Station → Wrapping Machine → Pallet Accumulation → AGV/Forklift
For a robotic palletizing system, the dispenser can automatically prepare an empty pallet while the robot handles products.
For a warehouse automation project, the dispenser can be connected with conveyors, AGVs or AMRs to create an automatic pallet circulation system.
For packaging lines, it can communicate with the packaging machine and palletizer so that an empty pallet is supplied only when required.
This approach is more efficient than treating the dispenser as a standalone machine.
Main Applications
Automated Palletizing Lines
The dispenser automatically supplies empty pallets to robotic or conventional palletizers.
This is particularly useful for high-volume packaging operations where manual pallet placement can become a bottleneck.
Manufacturing Production Lines
Factories can use customized pallet dispensers to supply workpiece pallets to assembly, machining, testing, or inspection stations.
The pallet may carry products, components, fixtures, or work-in-process materials.
Warehousing and Distribution
The dispenser can be integrated into automated pallet storage and retrieval systems, conveyor networks, and AGV/AMR systems.
Food and Beverage Packaging
Packaging lines often require a continuous supply of clean and correctly positioned pallets.
The dispenser can be designed with suitable materials, guarding, and cleaning requirements for the application.
Automotive Manufacturing
Automotive components are often transported using dedicated pallets or production carriers.
A customized dispenser can handle these pallets according to the dimensions and weight of the production system.
Electronics and New Energy Manufacturing
Battery, electronics, and precision assembly lines may use dedicated production pallets.
The dispenser can be integrated with conveyors and positioning systems to automatically feed these pallets into the production process.
Logistics and E-Commerce
High-volume distribution centers can use pallet dispensers to reduce manual pallet handling at loading and palletizing stations.
Let us know what you need by email or what’s app ,and our professionals will develop a tailored plan based on your specific situation.
What Problems Does a Non-Standard Pallet Dispenser Solve?
1. Manual Pallet Handling
Operators no longer need to repeatedly lift, pull, and position heavy pallets.
This reduces physical workload and makes pallet handling more consistent. Automatic dispensers are specifically used to reduce manual handling and associated injury risks.
2. Production Bottlenecks
If a palletizer processes products faster than an operator can supply empty pallets, the pallet supply becomes a bottleneck.
Automatic dispensing keeps pallets available according to production demand.
3. Inconsistent Pallet Positioning
Manual pallet placement can result in incorrect positioning.
A dispenser combined with sensors and conveyor positioning provides a repeatable pallet position for robots and palletizing equipment.
4. Labor Dependency
The machine reduces the need for dedicated personnel to continuously feed pallets.
Operators can instead focus on material replenishment, quality control, machine monitoring, or other higher-value tasks.
5. Limited Factory Space
A customized frame, magazine, conveyor direction, and loading method can be designed around existing equipment and building restrictions.
6. Multiple Pallet Specifications
A non-standard machine can be designed to handle different pallet sizes or pallet materials.
Some industrial systems are specifically engineered to handle multiple pallet styles, including wood, plastic, metal, GMA, CHEP, and other formats.
7. Difficult Equipment Integration
A standard dispenser may not match the height, direction, communication protocol, or conveyor layout of an existing production line.
A non-standard system can be designed as part of the complete equipment integration project.
Non-Standard Pallet Dispenser vs. Standard Pallet Dispenser
| Factor | Standard Pallet Dispenser | Non-Standard Pallet Dispenser |
|---|---|---|
| Pallet Size | Mainly standard sizes | Custom sizes available |
| Pallet Type | Limited configurations | Wood, plastic, metal, composite, custom |
| Layout | Fixed or semi-standard | Designed around factory layout |
| Conveyor Interface | Standard | Customized |
| Pallet Height | Limited adjustment | Customizable |
| Throughput | Based on standard design | Designed according to production demand |
| Automation | Basic automatic operation | PLC, HMI, robot, MES/WMS integration |
| Multiple Pallet Sizes | Limited | Possible with customized mechanisms |
| Installation Space | Requires suitable standard footprint | Designed for available space |
| Control Logic | Standard program | Customized sequence |
| Safety System | Standard guarding | Application-specific safety design |
| Engineering | Product-based | Project-based |
| Best For | Common applications | Complex automation projects |
Competitive Analysis of Non-Standard Pallet Dispensers
The competitive landscape can generally be divided into standard pallet dispenser manufacturers, integrated automation suppliers, robotic pallet-handling solutions, and custom equipment integrators.
| Solution Type | Strengths | Limitations | Best Application |
|---|---|---|---|
| Standard Pallet Dispenser | Proven design, faster deployment | Limited customization | Standard pallets and simple lines |
| Pallet Stacker/Destacker | Can stack and dispense pallets | Larger and more complex for simple dispensing | Two-way pallet handling |
| Robotic Pallet Handling | Highly flexible | Higher system cost and programming requirements | Mixed pallet sizes and complex layouts |
| Conveyor-Based Dispenser | Easy line integration | Depends on conveyor configuration | Automated packaging lines |
| Custom Non-Standard Dispenser | Maximum flexibility and integration | Requires engineering and commissioning | Complex production systems |
| Manual Pallet Feeding | Low equipment investment | High labor, inconsistent, slower | Low-volume operations |
Established equipment suppliers demonstrate different approaches. For example, LEWCO offers pallet dispenser systems that can operate in both destacking and stacking modes, while Whallon provides systems designed for multiple pallet types and integration with existing equipment.
Other manufacturers focus on high-speed dispensing, integrated conveyors, or robotic pallet handling. This means the most important competitive factor is not simply the dispenser itself, but how well the equipment fits the customer’s complete production system.
Why Equipment Integration Matters
A pallet dispenser rarely works alone.
A reliable automation project needs to consider:
- Pallet dimensions
- Pallet weight
- Pallet material
- Stack height
- Required cycle time
- Conveyor height
- Conveyor speed
- Robot working range
- Forklift or AGV access
- Factory floor space
- Safety requirements
- PLC communication
- MES/WMS connection
- Future production expansion
A poorly matched dispenser may work correctly as an individual machine but still create problems in the complete production line.
For this reason, non-standard pallet dispenser design should begin with the entire process rather than the machine itself.
Customization Options
A non-standard pallet dispenser can be customized in several areas:
Mechanical Customization
- Pallet dimensions
- Magazine capacity
- Frame dimensions
- Fork configuration
- Lifting stroke
- Conveyor width
- Conveyor height
- Loading direction
- Discharge direction
Drive System
Depending on the application, the lifting and separation mechanisms can use:
- Servo motors
- Gear motors
- Electric cylinders
- Pneumatic cylinders
- Hydraulic systems
Electric spindle and hydraulic lifting are both used in industrial pallet handling equipment.
Control Customization
The control system can include:
- PLC
- HMI
- Photoelectric sensors
- Proximity sensors
- Safety light curtains
- Safety switches
- Alarm systems
- Stack-height detection
- Automatic pallet counting
- Production data collection
System Integration
The dispenser can be connected with:
- Roller conveyors
- Chain conveyors
- Pallet conveyors
- Robot palletizers
- Depalletizers
- AGVs
- AMRs
- Wrapping machines
- Packaging machines
- MES
- WMS
- Factory SCADA systems
Key Design Considerations
Before designing a non-standard pallet dispenser, manufacturers should collect several important parameters.
Pallet information
- Length × width × height
- Material
- Empty pallet weight
- Maximum stack height
- Two-way or four-way entry
- Pallet condition and tolerance
Production requirements
- Pallets per hour
- Required cycle time
- Operating hours per day
- Required automation level
- Number of production lines
Factory requirements
- Available footprint
- Conveyor elevation
- Forklift access
- Operator access
- Safety zones
- Existing equipment interfaces
Control requirements
- PLC brand
- Communication protocol
- HMI requirements
- MES/WMS integration
- Alarm and traceability requirements
These parameters determine whether a simple dispenser, stacker/destacker, robotic solution, or fully customized equipment integration approach is appropriate.
Why Choose a Non-Standard Solution?
The biggest advantage is adaptability.
Instead of changing the factory layout to fit an off-the-shelf dispenser, the equipment can be designed around the existing process.
This is particularly valuable when the customer needs:
- A unique pallet size
- High production throughput
- Multiple pallet formats
- Restricted installation space
- Existing conveyor integration
- Robotic palletizing
- Automated warehouse connection
- Customized safety requirements
- Future production expansion
For equipment integration projects, the dispenser becomes one module within a larger automated material-handling system.
Conclusion
A Non-Standard Pallet Dispenser in Equipment Integration is more than an automatic pallet feeder. It is a customized material-handling module designed to connect pallet storage, pallet separation, conveying, robotic handling, and production processes.
Its core value is simple: automatically provide the right pallet, at the right position, at the right time.
For manufacturers with standard pallets and simple requirements, an off-the-shelf dispenser may be sufficient. But when pallet dimensions, production processes, conveyors, robots, factory space, or control systems are non-standard, a customized solution can provide better integration and long-term operating efficiency.
The best pallet dispenser is therefore not necessarily the one with the highest speed or largest capacity. It is the one that fits the entire production system and operates reliably with the equipment around it.
