Automatic Press-Fitting Equipment

Automatic press-fitting equipment is an automated assembly machine designed to insert, press, or force-fit one component into another with controlled force, position, and speed. It is widely used when parts must be assembled with consistent interference fit, insertion depth, and pressing force.

Compared with manual assembly or conventional pneumatic presses, modern automatic press-fitting systems can combine servo pressing, automatic feeding, precision positioning, force-displacement monitoring, PLC control, and quality inspection in one production station.

For manufacturers, the main value is simple: the machine does the same press-fitting operation the same way, every cycle, while recording whether the result is acceptable. Servo press systems commonly use force and displacement data to monitor the complete joining process and detect deviations in real time.

What Is Automatic Press-Fitting Equipment?

Automatic press-fitting equipment is a type of non-standard automation equipment used to join components through controlled mechanical pressure.

Typical press-fitting operations include:

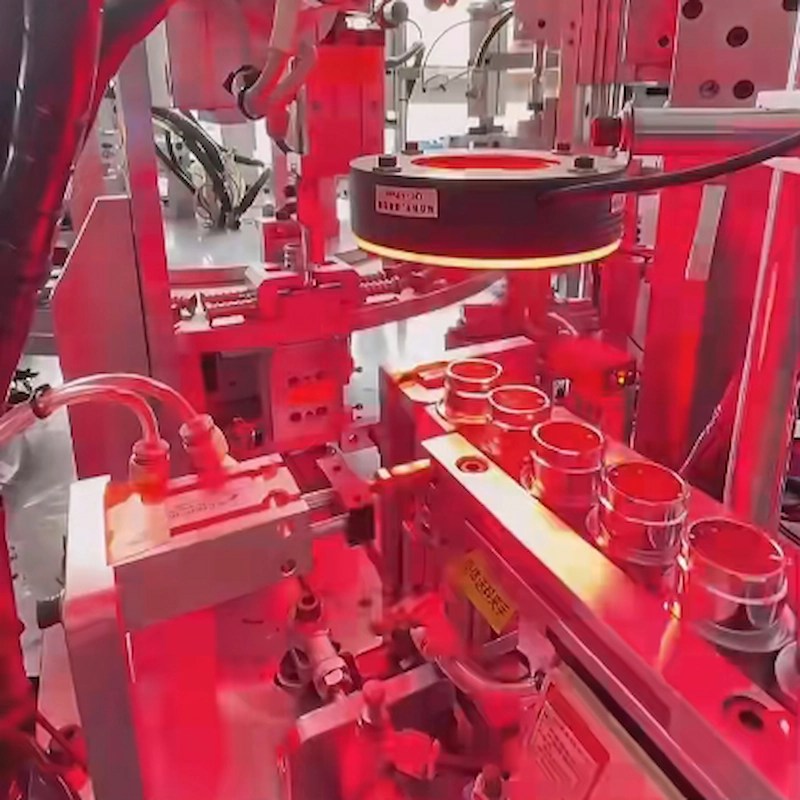

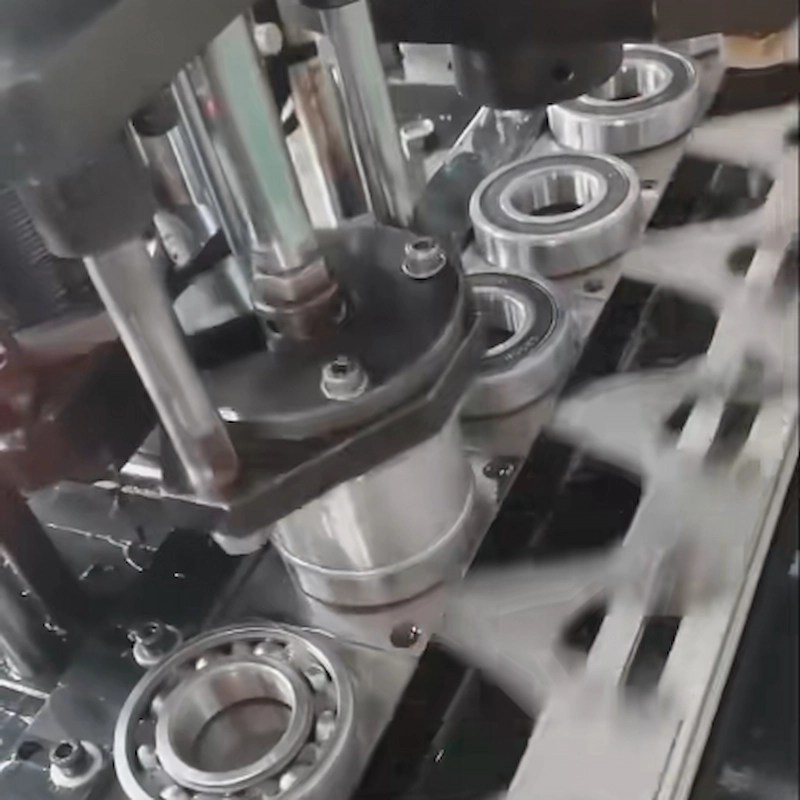

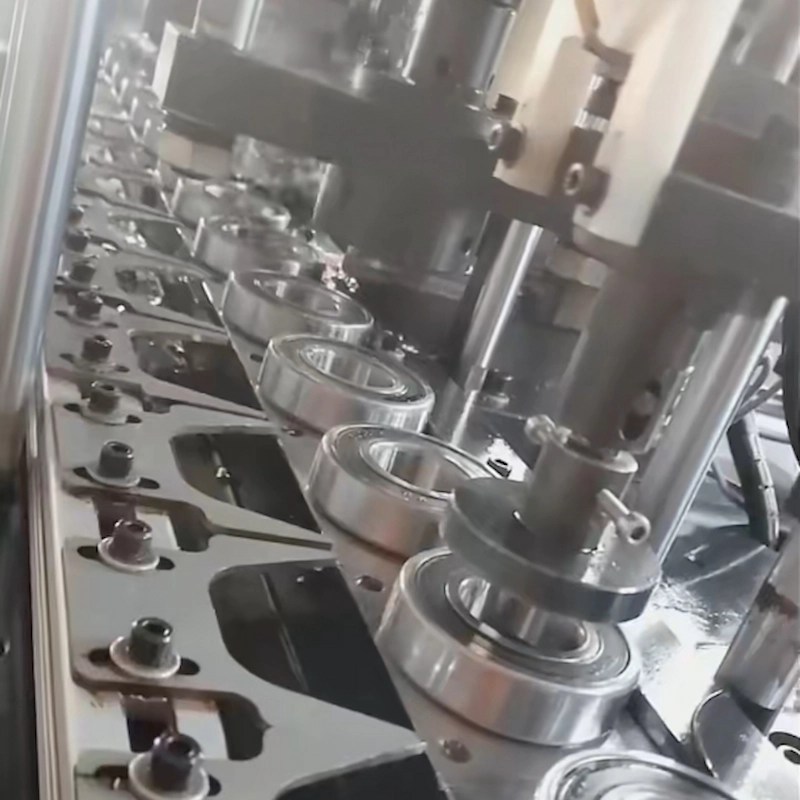

• Bearing insertion
• Shaft and bushing assembly
• Pin pressing
• Gear installation
• Bush and sleeve insertion
• Connector insertion
• Rotor shaft assembly
• Motor component assembly
• Automotive component press-fitting
• Electronic component insertion
• Riveting and clinching
• Sealing ring and oil seal installation

The machine can be designed as a standalone press-fitting station or integrated into a complete automated production line with conveyors, robots, feeding systems, vision inspection, barcode tracking, and MES communication.

For high-precision applications, servo press technology is particularly useful because the pressing force, position, speed, and force-displacement curve can be monitored and controlled during each cycle.

---

Main Components of Automatic Press-Fitting Equipment

A complete automatic press-fitting machine normally consists of several mechanical, electrical, and control modules.

The force sensor and displacement sensor are especially important for precision press-fitting. Their combined data can generate a force-displacement curve, allowing the system to identify abnormal insertion behavior rather than simply checking whether the press reached its final position.

---

How Automatic Press-Fitting Equipment Works

The exact process depends on the product, but a typical automatic cycle follows these steps.

1. Automatic Part Feeding

The components are supplied by a bowl feeder, linear feeder, tray system, conveyor, hopper, robot, or other customized feeding mechanism.

The feeding system ensures that the parts arrive at the assembly position in the correct orientation.

2. Part Positioning

The workpiece is transferred into a precision fixture.

Sensors or a vision system can verify:

• Part presence
• Part orientation
• Correct model
• Position
• Component type

If the part is incorrect or missing, the PLC prevents the press from starting.

3. Tool Alignment

The pressing tool moves toward the workpiece.

The fixture and tooling are designed to maintain the correct alignment between the two components.

Good alignment is critical because excessive angular deviation can damage the component or create an unreliable press fit. Poor alignment is also one of the common causes of press-fitting problems.

4. Controlled Pressing

The servo press begins the insertion process.

Instead of simply applying maximum force, the machine can control:

• Pressing speed
• Pressing position
• Force
• Stroke
• Holding time
• Multi-stage pressing profile

This allows the pressing process to be adapted to different materials and assembly requirements.

5. Force-Displacement Monitoring

During pressing, the load cell measures force while the position sensor measures displacement.

The controller compares the actual force-displacement curve with predefined quality limits.

For example:

Normal curve → PASS

Excessive force → Possible interference or misalignment

Insufficient force → Possible missing or loose component

Abnormal displacement → Incorrect seating or wrong component

Modern servo systems can record these values for every cycle, providing 100% process monitoring and traceability.

6. Automatic Quality Judgment

After pressing, the PLC determines whether the assembly meets the defined process window.

A qualified product proceeds to the next station.

A defective product can automatically be:

• Rejected
• Marked
• Sent to a rework station
• Recorded in the production database

7. Automatic Unloading

A robot, pneumatic gripper, electric actuator, or conveyor transfers the finished product to the next process.

The machine then resets and starts the next cycle.

If you are looking for a press machine ,or need all parts of the production line,pls don’t hesited to contact us.We are specialied in industrial automation for 13years.We have extensive experience in automated production lines and automatic equipment.Send us your requirement and get a customized solution !

You can also get in touch via What’s app.

---

What Problems Does Automatic Press-Fitting Equipment Solve?

1. Inconsistent Manual Pressing

Manual pressing depends heavily on operator skill.

Different operators may apply different force, speed, and positioning.

Automatic equipment uses programmed parameters to make the process repeatable.

2. Unstable Press-Fit Quality

A component may appear correctly assembled but still have an incorrect insertion force or depth.

Force-displacement monitoring provides much more process information than visual inspection alone.

3. Misalignment

Incorrect alignment can cause:

• Scratches
• Deformation
• Component damage
• Excessive force
• Incomplete insertion
• Premature product failure

Precision fixtures, sensors, and controlled motion help reduce these problems.

4. High Labor Costs

Automatic feeding, pressing, inspection, and unloading reduce the amount of repetitive manual work required.

This is particularly valuable for high-volume production.

5. Lack of Traceability

Traditional presses may only complete the physical pressing operation.

An automated servo press can record:

• Force
• Position
• Stroke
• Cycle time
• Product ID
• Pass/fail result
• Force-displacement curve

This makes it easier to trace production quality and investigate defects.

6. High Scrap Rates

If the machine detects abnormal pressing force or displacement during the operation, defective assemblies can be identified immediately instead of moving further down the production line.

This helps reduce scrap and downstream rework.

---

Main Applications of Automatic Press-Fitting Equipment

Automotive Manufacturing

Automotive production is one of the major application areas.

Typical applications include:

• Bearing installation
• Bush pressing
• Shaft assembly
• Gear assembly
• Steering components
• Brake components
• Transmission components
• Motor components
• Chassis components
• Oil seal installation

Servo press systems are widely used in automotive and supplier manufacturing because they can combine controlled joining with process monitoring.

Electric Motor and New Energy

Press-fitting equipment is commonly used for:

• Rotor shaft insertion
• Bearing assembly
• Stator-related components
• Motor housings
• Magnetic component assembly
• New energy motor components

Automated rotor assembly systems, for example, can combine robotic loading with servo pressing and pressure/displacement monitoring.

Electronics

Applications include:

• Connector insertion
• Terminal pressing
• Pin insertion
• Housing assembly
• Small mechanical component insertion

For delicate electronic components, programmable force and displacement control can help prevent excessive insertion force.

Medical Devices

Medical components often require highly repeatable assembly processes.

Press-fitting equipment can be used for:

• Bushings
• Pins
• Small shafts
• Housings
• Precision mechanical components

The ability to record process data is especially useful when production requires detailed quality documentation.

Appliances and Power Tools

Typical applications include:

• Bearing assembly
• Gear installation
• Shaft pressing
• Housing assembly
• Switch components
• Mechanical fastener insertion

Servo presses are used across automotive, medical, electronics, appliance, and power-tool industries.

---

Automatic Press-Fitting Equipment vs. Traditional Pressing Methods

Servo presses are increasingly used where manufacturers need precise motion control, process monitoring, flexibility, and lower operating costs compared with conventional hydraulic or pneumatic systems.

---

Competitive Analysis of Automatic Press-Fitting Equipment

The competitive landscape can be divided into pneumatic presses, hydraulic presses, electric servo presses, and fully customized automatic press-fitting systems.

For very high-force applications, hydraulic technology can still have an advantage because servo-electric presses have practical force limitations. For precision assembly below those force levels, servo-electric systems offer stronger control and data-monitoring capabilities.

---

Why Choose a Servo Press-Fitting System?

The biggest difference is not simply that the machine is automatic.

It is that the pressing process becomes measurable and controllable.

A traditional machine may answer:

Did the press complete the stroke?

A modern servo press-fitting system can answer:

Was the correct component installed, at the correct position, with the correct force, displacement, speed, and process curve?

This difference is important for manufacturers producing safety-critical or high-value components.

For example, a servo press can be programmed to slow down before contact, increase force during insertion, maintain a specific force, stop at a target position, and verify the resulting force-displacement curve.

---

Custom Automatic Press-Fitting Equipment

For non-standard automation projects, the press itself is only one part of the solution.

A complete customized system can integrate:

• Servo press
• Automatic feeding
• Robotic loading
• Precision fixtures
• Vision inspection
• Barcode or QR-code tracking
• Force-displacement monitoring
• Automatic rejection
• Conveyor transfer
• PLC control
• HMI operation
• MES communication
• Production data collection
• Safety enclosure

This configuration allows the press-fitting machine to become part of a complete automated assembly line rather than operating as an isolated machine.

For example, a typical production sequence can be:

Part Feeding → Vision Inspection → Robotic Loading → Positioning → Servo Press-Fitting → Force/Displacement Inspection → Automatic Judgment → Marking → Unloading → Next Process

This approach is particularly suitable for manufacturers with complex products, multiple assembly steps, or strict quality requirements.

---

Key Parameters to Consider Before Buying

The machine should be designed according to the actual press-fitting process rather than selecting a press only by tonnage.

Important parameters include:

The required press force should be determined from the actual interference fit, material properties, geometry, friction conditions, and safety margin rather than simply selecting the largest available machine.

---

Automatic Press-Fitting Equipment for High-Precision Manufacturing

Automatic press-fitting equipment is more than a powered press.

A properly engineered system combines mechanical precision, controlled motion, sensing, automation, and quality inspection.

For simple applications, a pneumatic press may be sufficient. For high-force applications, hydraulic equipment can still be the practical choice. But when the goal is repeatable precision, automatic production, real-time force monitoring, data traceability, and flexible process control, a servo-driven automatic press-fitting system offers a stronger solution.

For manufacturers running high-volume assembly, the real benefit is not just faster pressing. It is the ability to make the entire press-fitting process repeatable, measurable, and controllable.
