A Customized Double-Speed Chain Conveyor Line is a powered conveyor system designed to move pallets, workpieces, containers, fixtures, and other industrial loads through different stages of a production or assembly process.

Unlike a standard chain conveyor, a customized double-speed chain conveyor line is designed around the customer’s product dimensions, load requirements, production layout, transfer points, and automation process.

The “double-speed” design normally uses accumulated roller chain technology, allowing the carrier or pallet to move faster than the chain itself. This makes the conveyor suitable for production lines that require continuous material flow, buffering, accumulation, and precise positioning.

For manufacturers, the key advantage is not simply higher conveying speed. The real value is the ability to integrate the conveyor with assembly machines, robots, inspection stations, pallet dispensers, lifting units, positioning devices, and other automation equipment.

What Is a Customized Double-Speed Chain Conveyor Line?

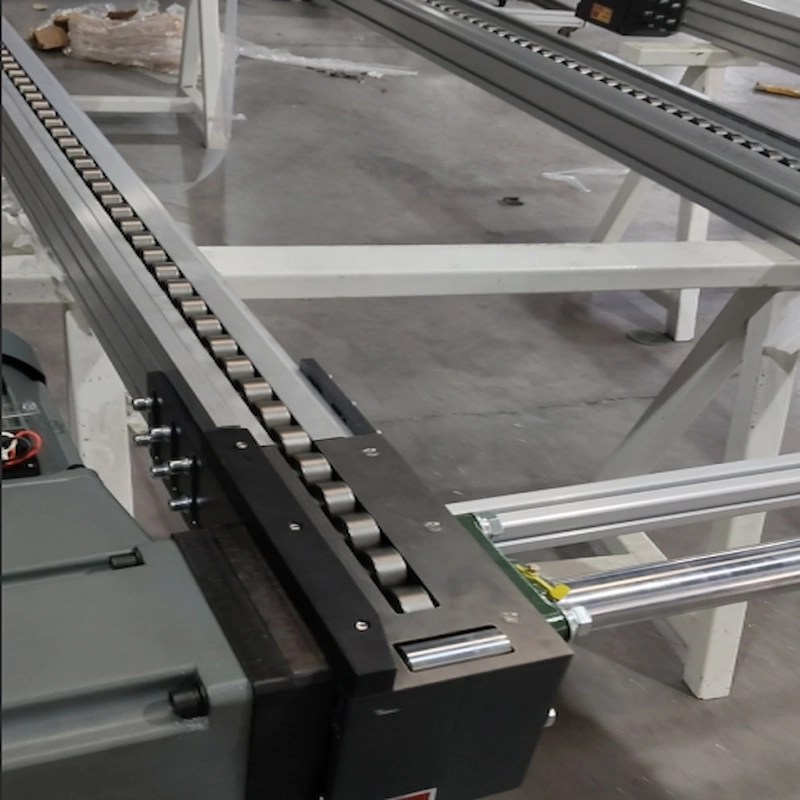

A double-speed chain conveyor typically uses two parallel strands of conveyor chain to transport a pallet or carrier.

The chain runs continuously along the conveyor track. Special rollers or carrier wheels between the chain and the transported pallet reduce friction and allow the pallet to travel faster than the chain speed.

For example, if the chain moves at 10 m/min, the carrier can be designed to travel at approximately twice the chain speed under suitable mechanical conditions.

The exact speed ratio depends on the chain, roller diameter, sprocket design, load, and conveyor configuration.

A customized system can include:

• Straight conveyor sections
• Curved conveyor sections
• Pallet accumulation zones
• Workpiece positioning stations
• Lifting and lowering units
• Transfer units
• Stopper mechanisms
• Inspection stations
• Robotic loading and unloading stations
• Buffer sections
• Automatic pallet return systems
• Sensors and control systems

The conveyor can therefore become part of a complete automated production line rather than functioning as a standalone material-handling machine.

How Is a Customized Double-Speed Chain Conveyor Manufactured?

Customization starts with the production requirements rather than the conveyor itself.

1. Process and Layout Analysis

The manufacturer first reviews:

• Product dimensions
• Product weight
• Pallet or carrier size
• Required conveying speed
• Production takt time
• Number of workstations
• Accumulation requirements
• Transfer directions
• Available factory space
• Inlet and outlet heights
• Automation equipment interfaces

The layout is then developed according to the actual production process.

2. Mechanical Design

Engineers select the appropriate conveyor width, chain specification, frame structure, drive system, roller configuration, stopper mechanism, and transfer method.

The conveyor frame is normally designed from welded steel, aluminum profiles, or a combination of structural materials, depending on load capacity and application requirements.

3. Component Manufacturing

The main structural components are processed according to engineering drawings.

Typical manufacturing operations include:

• Steel or aluminum cutting
• CNC machining
• Drilling
• Welding
• Surface treatment
• Chain track machining
• Sprocket installation
• Roller assembly
• Electrical cabinet fabrication

Critical mounting and positioning surfaces need to maintain suitable dimensional accuracy to ensure stable operation.

4. Assembly

The manufacturer assembles the frame, chains, drive unit, sprockets, rollers, sensors, stoppers, transfer mechanisms, and electrical components.

The chain tension and conveyor alignment are adjusted during assembly.

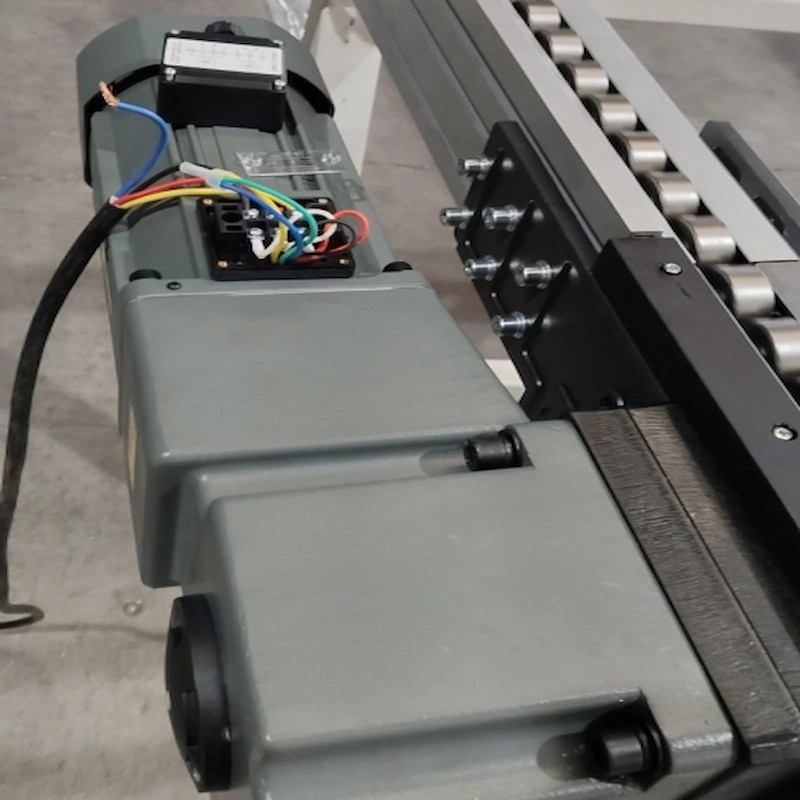

This is a driving motor.

5. Electrical and Control Integration

The conveyor can be connected to:

• PLC control systems
• Variable frequency drives
• Servo systems
• Photoelectric sensors
• Proximity sensors
• Safety switches
• HMI panels
• Barcode or RFID systems
• Robot controllers
• MES or production management systems

6. Testing and Commissioning

Before shipment, the conveyor line is tested for:

• No-load operation
• Loaded operation
• Chain movement
• Pallet stability
• Accumulation
• Stop-and-release operation
• Transfer accuracy
• Sensor response
• Emergency-stop functions
• Communication with other machines

This process helps identify mechanical or control problems before installation at the customer’s factory.

Main Components of a Double-Speed Chain Conveyor Line

Component	Function
Conveyor Frame	Supports the entire conveyor structure
Double-Speed Chain	Transfers the driving force to pallets or carriers
Drive Motor	Provides mechanical power
Gearbox	Reduces motor speed and increases output torque
Drive Sprocket	Drives the conveyor chain
Idler Sprocket	Guides the return side of the chain
Carrier Rollers	Reduce friction between chain and pallet
Pallet/Carrier	Supports the transported product
Guide Rails	Keep pallets aligned during transportation
Stopper	Stops pallets at specified workstations
Sensors	Detect pallet and product position
Transfer Unit	Moves pallets between conveyor sections
Lifting Unit	Changes pallet elevation
Control Cabinet	Controls motors, sensors, and actuators
PLC	Executes the conveyor control logic
Safety Devices	Protect operators and equipment

The actual configuration can be changed according to the production process.

For example, a simple material-transfer conveyor may only require a drive unit, chain, frame, sensors, and control system. A fully automated assembly line may require multiple transfer stations, positioning mechanisms, robots, inspection systems, and pallet tracking.

Working Principle of a Double-Speed Chain Conveyor

The operating process is relatively simple.

First, the motor transfers power through the gearbox to the drive sprocket.

The drive sprocket moves the two parallel chains along the conveyor track.

The pallet or carrier sits on the chain-supported rollers. As the chain moves, the rollers rotate and allow the pallet to travel along the conveyor.

Because of the special chain-and-roller structure, the pallet can travel at a higher linear speed than the chain itself.

When the pallet reaches a workstation, a stopper can hold it in position.

The PLC receives signals from sensors and determines whether the pallet should:

1. Continue moving
2. Stop at a workstation
3. Wait in a buffer zone
4. Transfer to another conveyor
5. Move to a lifting station
6. Enter an inspection station
7. Return to the previous process

After the workstation completes its operation, the stopper releases the pallet and the conveyor continues transporting it.

This allows multiple pallets to move through the production line while different processes are performed at different stations.

Main Applications

Customized double-speed chain conveyor lines are commonly used where products need controlled transportation between multiple production processes.

Automotive and Auto Parts

Typical applications include:

• Engine component assembly
• Transmission component handling
• Battery component assembly
• Seat assembly
• Small automotive parts
• Inspection and testing lines

Pallets can carry components through machining, assembly, inspection, and testing stations.

Electronics Manufacturing

The conveyor can transport:

• Electronic assemblies
• PCB carriers
• Components
• Electrical housings
• Finished products

Positioning and accumulation functions are useful when products require inspection or manual assembly at different stations.

Appliance Manufacturing

Applications include production lines for:

• Washing machines
• Refrigerators
• Air conditioners
• Small appliances
• Motors and compressors

The conveyor can connect assembly, testing, inspection, and packaging operations.

Battery and New Energy Equipment

Double-speed conveyor systems can be integrated into:

• Battery module assembly
• Battery pack assembly
• Component inspection
• Material transfer
• Testing stations

The conveyor design can be adapted to the required pallet size, payload, production sequence, and safety requirements.

Industrial Automation

The conveyor can also serve as the transportation backbone for non-standard automation equipment.

It can connect:

Loading → Processing → Assembly → Inspection → Testing → Packaging

This makes it particularly useful for manufacturers building customized production lines.

If you are looking for a custom double-speed chain conveyor,pls contact us with your requirements.Our professional engineer will help you to choose the suitble product.

What Problems Does It Solve?

1. Unstable Manual Material Handling

When operators manually move products between workstations, transportation speed and positioning can vary.

A conveyor creates a consistent material flow and reduces unnecessary manual handling.

2. Limited Production Space

A customized conveyor can be designed around the customer’s actual factory layout.

The line can include straight sections, transfers, elevation changes, and accumulation zones to make better use of available space.

3. Production Bottlenecks

Not every workstation operates at the same speed.

Accumulation sections allow products to temporarily wait without stopping the entire production line.

This helps separate upstream and downstream processes.

4. Poor Product Positioning

Many assembly and inspection processes require the workpiece to stop at a repeatable position.

A stopper and positioning mechanism can provide controlled stopping before the robot, assembly machine, or inspection equipment performs its operation.

5. Excessive Manual Labor

Automated transportation reduces the need for operators to repeatedly carry products between production stations.

Operators can instead focus on assembly, quality control, machine operation, and other value-added tasks.

6. Difficult Production-Line Integration

Standard conveyors may not match the dimensions or process requirements of a specific production line.

A customized system can be designed with mechanical and electrical interfaces for robots, inspection machines, lifting devices, pallet dispensers, and other automation equipment.

Customized vs. Standard Double-Speed Chain Conveyor

Item	Standard Conveyor	Customized Double-Speed Chain Conveyor
Conveyor Width	Fixed options	Designed according to product
Pallet Size	Standard	Customizable
Load Capacity	Fixed range	Designed according to actual load
Conveyor Length	Standard modules	Custom length
Layout	Limited	Designed around factory layout
Workstation Integration	Basic	High
Stopper System	Optional	Designed for process requirements
Transfer Mechanism	Limited	Customizable
PLC Control	Basic or optional	Can be integrated
Robot Integration	Limited	Suitable
Inspection Integration	Limited	Suitable
Accumulation	Standard configuration	Process-specific
Expansion	Depends on standard design	Can be designed for future expansion

The main difference is flexibility.

A standard conveyor may be suitable when the product and production process are simple. A customized conveyor becomes more valuable when the production line includes multiple machines, different product sizes, automated workstations, or special transfer requirements.

Competitive Analysis of Double-Speed Chain Conveyor Systems

Conveyor Type	Main Strength	Main Limitation	Suitable Applications
Double-Speed Chain Conveyor	High-speed pallet transfer and accumulation	More mechanical components	Automated assembly lines
Belt Conveyor	Smooth and relatively simple transport	Less suitable for heavy pallets and precise stopping	Boxes, light products
Roller Conveyor	Good for pallets and heavy loads	Positioning may require additional devices	Warehousing and pallet handling
Standard Chain Conveyor	Strong load capacity	Less flexible for high-speed pallet accumulation	Heavy-duty transportation
Flexible Conveyor	Easy layout changes	Usually lower load capacity	Temporary or flexible material handling
AGV/AMR	Flexible point-to-point transportation	Requires navigation and fleet management	Flexible factory logistics

No conveyor type is suitable for every production process.

The selection should be based on product weight, pallet design, takt time, positioning requirements, production layout, automation level, and required flexibility.

For fixed production lines where pallets need to move continuously between defined workstations, a double-speed chain conveyor can provide a practical combination of speed, accumulation, positioning, and automation integration.

Why Choose a Customized Double-Speed Chain Conveyor Line?

The purpose of customization is not simply to make the conveyor longer or wider.

The goal is to make the conveyor fit the production process.

A properly designed system can integrate:

• Custom pallets
• Automated pallet dispensers
• Industrial robots
• Vision inspection systems
• Press-fitting machines
• Assembly machines
• Testing equipment
• Lifting mechanisms
• Transfer units
• Barcode or RFID tracking
• PLC control
• MES communication

This allows the conveyor to become an important part of the overall automation system.

For manufacturers with non-standard products or complex production processes, customization can also reduce unnecessary modifications during installation.

How to Choose a Double-Speed Chain Conveyor Manufacturer

Before requesting a quotation, buyers should prepare several basic parameters:

• Product dimensions
• Product weight
• Pallet dimensions
• Maximum pallet load
• Required conveyor length
• Required conveyor width
• Conveying speed
• Production takt time
• Number of workstations
• Required accumulation capacity
• Floor height and elevation
• Transfer requirements
• Control requirements
• Safety requirements
• Factory layout

A good manufacturer should be able to convert these production requirements into a complete mechanical and electrical solution rather than simply offering a standard conveyor.

Conclusion

A Customized Double-Speed Chain Conveyor Line is more than a material-handling machine. It is a configurable transportation and production-flow system for automated manufacturing.

Its main advantages come from the combination of double-speed conveying, pallet accumulation, controlled positioning, and integration with automation equipment.

For automotive, electronics, appliances, batteries, industrial components, and other manufacturing applications, the conveyor can connect different production stations while reducing manual handling and improving material-flow consistency.

When selecting a customized system, focus on the actual production requirements rather than conveyor specifications alone. The right design should match the product, pallet, load, takt time, layout, workstation requirements, and future automation plans.
