Automatic Sheet Separator for Pulp Board Feeding

Product  View

The Automatic Sheet Separator is a customized material handling solution designed to separate stacked pulp boards into single sheets and feed them continuously into downstream equipment.

Widely used in pulp molding, fiberboard processing, and industrial paper packaging, this machine replaces manual sheet separation with precise mechanical and pneumatic control—improving safety, consistency, and overall production efficiency.

The Critical Role of Precision Feeding in Board Processing

To appreciate the value of an automatic sheet separator, one must first understand the nature of the materials being handled. Pulp board, fiber board, and paper board are not uniform like metal sheets or glass. They are organic, hygroscopic materials that vary in texture, stiffness, surface roughness, and weight. A stack of pulp molded sheets might have slight irregularities due to the molding process. Fiber boards can be dense and heavy, while certain paper boards might be thin and prone to static cling.

When these materials are stacked, several physical phenomena occur that make manual or simple mechanical feeding difficult. Sheets can stick together due to moisture content, surface tension, or simply the weight of the stack pressing them together. This is known as “double-sheeting” or “multi-feeding,” a catastrophic error in automated lines that can jam expensive machinery, ruin product batches, and cause significant downtime. Furthermore, as the stack height decreases during production, the angle and pressure required to pick the sheet change, requiring a feeding system that is dynamic and adaptable.

An automatic sheet separator is engineered specifically to overcome these variables. It is not merely a conveyor; it is a sophisticated singulation device. Its primary function is to take a disordered or compressed stack of material—often up to 1000mm in height—and isolate exactly one sheet at a time, transferring it with pinpoint accuracy to the next stage of production. The difference between a line that stops every ten minutes to clear a jam and a line that runs continuously for eight hours often comes down to the quality of the feeding system. In an era where labor costs are rising and the demand for speed is unrelenting, the automatic sheet separator has transitioned from a luxury add-on to a fundamental component of efficient manufacturing.

What Problems Does an Automatic Sheet Separator Solve?

In pulp processing and fiber-based production lines, sheets often stick together due to humidity, compression, or material properties. Manual feeding leads to:

Unstable feeding rates

High labor costs and safety risks

Double-sheet feeding that causes pulper blockage

Frequent downtime and inconsistent product quality

An automatic pulp board feeder eliminates these issues by ensuring accurate, single-sheet separation and constant feeding frequency.

How the Automatic Sheet Separator Works ?

The heart of any automatic sheet separator lies in its separation method. No two production environments are identical, and therefore, these machines employ a variety of techniques to handle different material characteristics. Understanding these mechanisms is crucial for selecting the right configuration for your specific application.

Vacuum Suction Systems

Vacuum suction is perhaps the most versatile and widely used method for separating pulp and paper boards. This system utilizes a series of suction cups connected to a high-power vacuum generator. When the cycle begins, the suction cups descend onto the top sheet of the stack. The vacuum creates a pressure differential, effectively gripping the sheet without physical clamping that could damage the surface.

The brilliance of vacuum systems lies in their adaptability. For porous materials like untreated pulp board, specialized seals and higher vacuum flow rates are used to maintain grip despite air leakage through the material. For smoother, non-porous coated boards, standard cups suffice. Advanced separators often feature tilting or blowing mechanisms alongside the suction cups. A blast of air might be injected between the top sheet and the second sheet to break the static bond before the suction cup lifts, ensuring that only the top sheet is raised. This “air floatation” technique is critical for preventing double-sheeting in lightweight or glossy materials. Vacuum systems are exceptionally gentle, making them ideal for printed surfaces where scratching or scuffing is unacceptable.

Friction Rollers

For materials that are stiffer or have a higher coefficient of friction, such as thick fiber boards or corrugated sheets, friction roller systems offer a robust solution. In this setup, a set of driven rollers contacts the top sheet while a opposing set of retard rollers (or a friction pad) holds back the rest of the stack. The drive rollers spin forward, pulling the top sheet into the feed path, while the resistance from the retard mechanism ensures that underlying sheets do not follow.

Friction feeding is mechanically simple and highly reliable for heavy-duty applications. It excels when dealing with sheets that are too rigid for vacuum cups to deform around effectively. However, it requires careful calibration. If the pressure is too high, it can mar the surface of sensitive boards; if too low, it may slip. Modern automatic separators integrate servo-controlled pressure adjustments, allowing the machine to automatically compensate as the stack height lowers, maintaining optimal friction levels throughout the entire batch.

Mechanical Grippers

In scenarios involving extremely heavy sheets or irregularly shaped pulp products (such as molded egg cartons or fruit trays that are nested), mechanical grippers provide the necessary holding force. These devices mimic the action of a human hand, using fingers or clamps to physically grasp the edge or specific features of the sheet.

Mechanical grippers are often customized for the specific geometry of the product. For instance, a gripper might be designed to hook onto the rim of a molded pulp tray. While generally slower than vacuum or friction systems, they offer unparalleled security for heavy loads where dropping a sheet could be dangerous or damaging. They are frequently used in conjunction with other methods; for example, a vacuum system might lift the sheet slightly to separate it, and a mechanical gripper then takes over for the long-distance transfer to the conveyor.

Hybrid and Custom Solutions

The most advanced automatic sheet separators often combine these methods. A machine might use vacuum suction to lift the front edge of a sheet, friction rollers to pull it out from the stack, and a belt conveyor to carry it away. This hybrid approach maximizes reliability. Additionally, for unique applications, manufacturers offer custom separation tools, such as magnetic lifters for boards with ferrous contaminants (rare but possible in recycled fibers) or specialized needle lifters for felt-like materials. The key is that the separation method is not a one-size-fits-all component but a tailored solution engineered to match the specific physical properties of the material being processed.

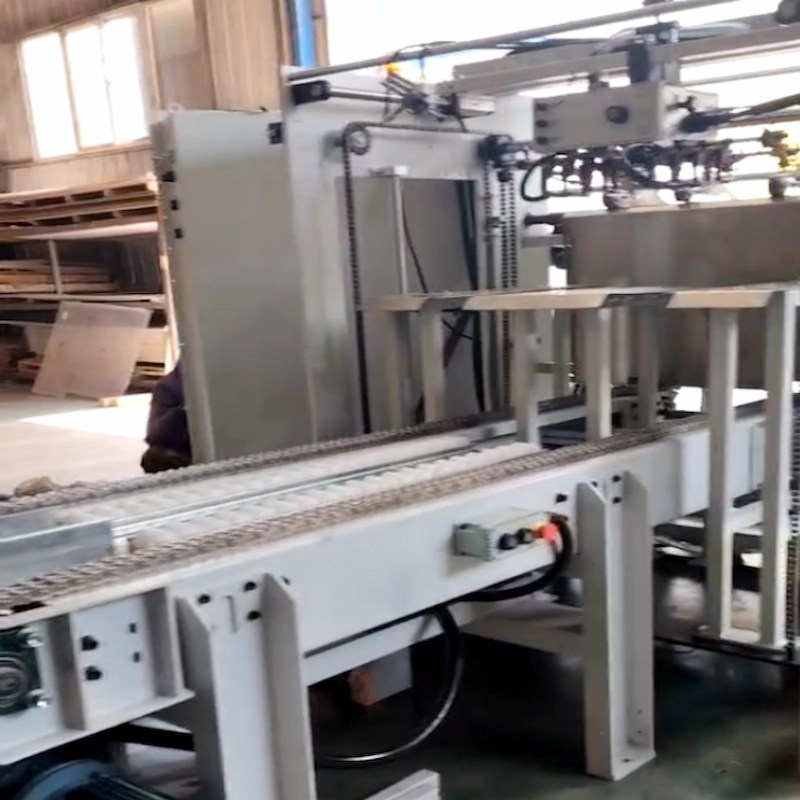

Click above picture to see how the machine works.

Depending on the material characteristics and production requirements, the separator uses one or more of the following technologies:

Vacuum suction cups for single-sheet pickup

Friction rollers for layer-by-layer separation

Mechanical grippers for heavy and high-density boards

Air-assisted separation to break sheet adhesion

Vibration mechanisms to reduce surface bonding

Separated sheets are transferred smoothly to belt conveyors, roller conveyors, or directly into pulpers, enabling continuous operation.

Key Applications

Pulp Molding & Eco-Friendly Tableware

Feeding bagasse pulp boards or wood pulp sheets into pulping systems for paper cups, plates, and food containers.

Pulp Preparation Systems

Automatic unpacking and feeding of purchased pulp sheets in paper mills, ensuring stable pulp consistency.

Industrial Cushion Packaging

Front-end feeding for protective packaging used in electronics and automotive parts.

Specialty Paper & Fiberboard

Precise single-sheet feeding for filter paper and fiberboard production lines.

This is a sheet separator we design and produce for a textile enterprise.

Key Advantages of Our Automatic Sheet Separator

Fully Customized Design
Tailored to your sheet size, thickness, weight, and production speed.

Stable and Accurate Feeding
Anti-double-sheet design ensures reliable downstream processing.

Reduced Labor and Improved Safety
Eliminates manual handling of heavy pulp boards.

High Compatibility
Easily integrates with existing pulpers and conveyor systems.

Industrial-Grade Reliability
Designed for continuous operation in demanding environments.

Good Aftersale Service

On-site installation, Free technical training，Response within 24 hours，One-year warranty，Regular follow-up sevice..

A stack of papers is placed onto the conveyor  by a forklift or manually, and then the conveyor transports the papers to the discharging position.

Technical Specifications

Typical parameters below. Final specifications are customized per project.

Technical Description and Customization Capabilities

One of the defining strengths of modern automatic sheet separators is their ability to be customized. Off-the-shelf solutions rarely fit the diverse needs of the pulp and board industry perfectly. Leading manufacturers design these systems with modularity in mind, allowing for extensive customization across several key parameters.

Sheet Size and Dimensions

The physical footprint of the materials varies wildly. A small component for electronics packaging might measure only 300mm x 200mm, while a large pallet sheet or furniture board could exceed 1200mm x 1200mm. Automatic sheet separators are built to accommodate this range. The frame width, the travel distance of the feeding head, and the size of the suction cup arrays or roller beds are all adjustable. Customization ensures that the machine occupies the minimum necessary floor space while still handling the maximum required sheet size. The ability to handle sizes from 300200mm up to 12001200mm means a single machine platform can serve multiple product lines with minor adjustments.

Thickness and Weight Handling

Material thickness is a critical variable, ranging from thin 1mm paper liners to dense 10mm fiber boards. The separation mechanism must adjust its vertical travel and gripping force accordingly. For thick, heavy boards, the structural integrity of the machine frame becomes paramount. Heavy-duty models utilize reinforced carbon steel or stainless steel frames to withstand the torque and weight of lifting massive sheets repeatedly. The drive systems are upgraded to high-torque servo motors capable of accelerating heavy loads without vibration. Single sheet weight is a customizable parameter; whether the sheet weighs 50 grams or 5 kilograms, the system’s dynamics are tuned to prevent swinging or misalignment during transfer.

Stack Height and Continuous Operation

Downtime for reloading material is a productivity killer. High-capacity automatic sheet separators support stack heights of up to 1000mm or more. This allows operators to load a massive pallet of material at once, enabling hours of unmanned operation. To manage such tall stacks, the feeding table often features an automatic lifting mechanism. As sheets are removed, the table rises, keeping the top sheet at a constant “pick height.” This eliminates the need for the separation head to travel up and down a meter or more for every single cycle, drastically improving cycle times and reducing wear on the vertical axis drives.

Processing Capacity and Speed

In high-volume manufacturing, speed is currency. Top-tier automatic sheet separators achieve processing capacities of up to 90 sheets per minute. Achieving this speed requires perfect synchronization between the separation head, the detection sensors, and the discharge conveyor. At 90 sheets per minute, the machine is completing a full pick-and-place cycle in less than 0.7 seconds. This demands high-response servo motors and ultra-fast PLC (Programmable Logic Controller) scan times. The acceleration and deceleration profiles of the motors are optimized to move the sheet rapidly without causing it to slide or shift, ensuring that high speed does not come at the cost of accuracy.

Advanced Control Systems and Intelligence

The muscle of the automatic sheet separator is its mechanical drive, but its brain is the control system. Modern machines have moved far beyond simple relay logic, embracing sophisticated digital control architectures that provide precision, diagnostics, and connectivity.

PLC and Servo Integration

At the core of the control system is a robust PLC, which acts as the central command unit. It coordinates the complex dance of actuators: extending the suction cups, engaging the vacuum, activating the blow-off air, driving the friction rollers, and synchronizing with the discharge conveyor. The integration of servo motors allows for precise positioning. Unlike pneumatic cylinders which move in a binary extend/retract fashion, servos can be programmed to move to exact millimeter positions with controlled velocity profiles. This is essential for “single sheet” feeding accuracy. The servo system ensures that the sheet is placed on the conveyor at the exact same spot every time, within a tolerance of fractions of a millimeter. This repeatability is vital for downstream processes like robotic picking or precision die-cutting.

Detection and Safety Features

A truly intelligent feeder knows when something goes wrong before it causes damage. Advanced detection functions are standard in high-quality separators.

• Double-Sheet Detection:This is the most critical safety feature. Using ultrasonic sensors, optical beams, or capacitance probes, the machine can detect if two or more sheets are being fed simultaneously. If a double sheet is detected, the system immediately halts the feed cycle and alerts the operator, preventing a costly jam in the downstream machine.
• Low Material Alarm:To facilitate continuous operation, sensors monitor the stack height. When the material level drops below a predefined threshold, a low material alarm is triggered. This gives the operator ample time to prepare the next pallet and reload the machine without causing a complete stoppage. Some advanced systems can even interface with AGVs (Automated Guided Vehicles) to request material delivery automatically.
• Empty Stack Detection:Ensures the machine doesn’t attempt to pick from an empty table, saving energy and preventing unnecessary wear.

Safety is also paramount. Emergency stop buttons are strategically placed for immediate access. Light curtains or safety guards can be integrated to halt the machine if an operator enters the danger zone. The control system is designed to fail safely; in the event of a power loss or system fault, the machine defaults to a state that prevents injury or product damage.

Drive Systems: Pneumatic vs. Servo

While the control system is digital, the physical drive can be pneumatic, servo-driven, or a hybrid.

• Pneumatic Systems:Traditionally used for their simplicity and lower upfront cost. They are excellent for high-force applications and dirty environments. However, they can be less precise and consume significant energy in the form of compressed air.
• Servo Systems:Increasingly becoming the standard for high-end separators. They offer superior energy efficiency (consuming power only when moving), incredible precision, and smoother motion profiles. Servo-driven feeders are quieter and allow for easier changeovers between different product sizes via software settings rather than mechanical adjustments.
• Hybrid Approach:Many machines use pneumatics for the gripping action (vacuum generation) and servos for the X-Y-Z movement, balancing cost and performance.

Integration into Production Lines

An automatic sheet separator does not operate in a vacuum; it is a link in a larger chain. Its effectiveness is measured by how seamlessly it integrates with upstream and downstream equipment.

Discharge Interfaces

The handoff from the separator to the next machine is a critical transition point. Automatic sheet separators are designed with flexible discharge interfaces to match various conveyor types:

• Belt Conveyors:Ideal for flat sheets and delicate surfaces. The smooth surface of the belt prevents marking and provides consistent traction.
• Roller Conveyors:Best for heavier boards or situations where accumulation is needed. Powered rollers can actively pull the sheet from the separator, increasing throughput.
• Chain Conveyors:Used for very heavy or abrasive materials where durability is key. Chains can handle higher loads and harsher environments.

The synchronization between the separator’s release mechanism and the conveyor’s speed is managed by the PLC. The sheet is accelerated to match the conveyor speed before release, ensuring a smooth transfer without sliding or impact.

Upstream Compatibility

On the input side, the separator must handle the logistics of material supply. For stacks up to 1000mm, the machine often includes a loading ramp or a lift-table interface compatible with standard pallet jacks or forklifts. Some facilities integrate the separator directly with an automated warehouse system, where stacks are delivered automatically. The machine’s frame material—whether carbon steel for cost-effectiveness or stainless steel for hygiene-critical environments (like food-grade pulp molding)—is chosen to match the factory’s environmental conditions.

Data Connectivity and Industry 4.0

Modern manufacturing is data-driven. Advanced automatic sheet separators are equipped with communication ports (Ethernet/IP, Profinet, Modbus) that allow them to connect to the plant’s SCADA (Supervisory Control and Data Acquisition) or MES (Manufacturing Execution System). This connectivity enables real-time monitoring of production counts, efficiency rates, and error logs. Managers can track how many sheets have been fed, how many double-sheet errors occurred, and the overall uptime of the feeder from a remote dashboard. This data is invaluable for predictive maintenance; for example, if the vacuum pressure gradually drops over time, the system can alert maintenance to check the filters or seals before a failure occurs.

Customized for Your Production Line

Every production line is different. Our automatic sheet separator is not a standard off-the-shelf machine.

We design the system based on:

Material type and adhesion level

Required feeding speed

Factory layout and space limitations

Downstream equipment interface

This ensures optimal performance and long-term reliability.

It is worth noting that not only do we offer this machine, but we can also provide the related conveyor line as well.

Practical Benefits: ROI and Operational Excellence

Investing in an automatic sheet separator is a strategic decision that yields tangible returns across multiple facets of operations.

Enhanced Productivity

The most immediate benefit is the increase in throughput. Manual feeding is limited by human speed and endurance. An operator might consistently feed 20-30 sheets per minute before fatigue sets in. An automatic separator runs at a constant 60 to 90 sheets per minute, 24/7 if necessary. This tripling of speed directly translates to higher production volumes without adding shifts or personnel. Furthermore, the elimination of micro-stops caused by feeding errors keeps the main processing machine running at its rated capacity.

Waste Reduction and Quality Control

Double-feeding is a major source of waste. When two sheets enter a die-cutter or printer, the result is usually a ruined product and potentially damaged tooling. The precision of automatic separators, coupled with double-sheet detection, virtually eliminates this type of waste. Additionally, because the sheets are handled gently and consistently, there is less damage to the product itself (scratches, dents, or creases), leading to a higher yield of first-quality goods. Consistent feeding also improves the quality of the downstream process; for instance, in printing, consistent registration leads to sharper images and less color waste.

Labor Optimization and Safety

Automation frees skilled workers from the monotonous and physically demanding task of bending, lifting, and feeding heavy boards repeatedly. This reduces the risk of musculoskeletal disorders (MSDs) and workplace injuries. Operators can be redeployed to higher-value tasks such as quality inspection, machine supervision, or packaging. The reduction in manual intervention also minimizes the risk of accidents involving moving machine parts, as the operator interacts with the feeder primarily during the bulk loading phase, which is often safeguarded.

Flexibility and Scalability

With customizable sheet sizes, thicknesses, and separation methods, a single automatic sheet separator can handle a wide variety of jobs. This flexibility is crucial for job shops and converters who run short batches of different products. Changeovers that used to take an hour of mechanical adjustment can now be done in minutes by recalling preset recipes on the HMI (Human-Machine Interface). This agility allows manufacturers to respond quickly to market demands and customer orders.

Selecting the Right Solution for Your Needs

Choosing the right automatic sheet separator requires a thorough analysis of your specific production requirements. It is not just about buying a machine; it is about engineering a solution.

Material Analysis: Start with the material. What is the exact composition? Is it wet pulp, dry fiber, or coated paper? What is the surface texture? This determines whether vacuum, friction, or mechanical gripping is best. For example, highly porous recycled pulp might require a high-flow vacuum system with specialized gaskets, while a glossy laminated board might need friction rollers with soft coatings to prevent slipping.

Dimensional Requirements: Define the minimum and maximum sheet sizes and weights you need to process. Ensure the machine’s stroke and frame can accommodate your largest products while still being efficient for your smallest. Don’t forget the stack height; if you want to run overnight unattended, you need a system that supports a 1000mm stack with automatic lift compensation.

Speed vs. Accuracy: While 90 sheets per minute is impressive, do you actually need that speed? Sometimes, a slightly slower machine that offers higher precision for delicate embossing work is a better choice. Evaluate your bottleneck. If your downstream oven or press can only handle 40 sheets per minute, paying for a 90-sheet feeder might be overkill unless you plan to expand capacity soon.

Environment and Durability: Consider your factory environment. Is it dusty? Humid? Corrosive? If you are in a wet pulp molding facility where humidity is high and water spray is common, a stainless steel frame and IP65-rated electrical components are essential to prevent rust and short circuits. For dry paper converting, a powder-coated carbon steel frame might be sufficient and more cost-effective.

After-Sales Support and Customization: Finally, partner with a manufacturer who offers genuine customization and strong support. Since these machines are often tailored, the ability to get spare parts, technical assistance, and software updates is critical. Look for suppliers who can demonstrate their experience with your specific type of board material.

Why Choose Us?

10+ years of experience in customized automation equipment

Proven projects in pulp molding and packaging industries

Engineering-driven design, not generic solutions

Global-ready electrical standards and support

Learn More About Automatic Sheet Separation

If you want a deeper understanding of the technology, applications, and selection tips, read our full guide:
👉 [What Is an Automatic Sheet Separator? A Complete Guide]
