What Is an Automatic Pulp Board Feeder?

An Automatic Pulp Board Feeder is an automatic machine which is a part of automated production line designed to store, separate, pick, and accurately feed pulp boards, molded fiber trays, paper trays, and other board-based products into production lines without manual handling.

It is commonly used in industries such as food packaging, electronics packaging, medical products, household goods, and industrial assembly where pulp boards or paper-based components need to be supplied continuously and precisely.

Unlike traditional manual feeding, an automatic pulp board feeder uses servo motors, sensors, vacuum systems, and intelligent control technology to achieve stable high-speed feeding, reduce labor dependency, and improve production efficiency.

The system can be integrated with cartoning machines, packaging lines, robotic assembly systems, printing machines, and inspection equipment to create a fully automated production process.

How Is an Automatic Pulp Board Feeder Manufactured?

The manufacturing process of an automatic pulp board feeder combines mechanical design, precision machining, electrical control, and automation integration.

1. Engineering Design and Customization

Before production, engineers analyze:

• Pulp board size and thickness
• Product feeding speed requirements
• Production line layout
• Material characteristics
• Automation level requirements

A customized structure is then designed using CAD software to ensure compatibility with the customer’s production system.

2. Mechanical Frame Manufacturing

The main machine frame is usually made from:

• Carbon steel with powder coating
• Stainless steel 304/316 for clean environments
• Aluminum profiles for lightweight structures

The frame is processed through:

• CNC cutting
• Welding
• Surface treatment
• Precision assembly

A rigid structure ensures stable operation during continuous high-speed feeding.

3. Precision Component Assembly

Key mechanical parts are manufactured and assembled, including:

• Feeding magazines
• Conveyor modules
• Guide rails
• Vacuum picking mechanisms
• Servo transmission systems
• Positioning devices

Each component is tested for accuracy, durability, and repeatability.

4. Electrical and Automation Integration

The machine is equipped with:

• PLC control system
• Servo drives
• Touchscreen HMI
• Sensors
• Pneumatic components
• Safety protection systems

Engineers program the control logic and optimize feeding parameters according to production requirements.

5. Testing and Quality Inspection

Before delivery, the equipment undergoes:

• Empty running tests
• Continuous feeding tests
• Speed verification
• Position accuracy testing
• Safety inspection

The goal is to ensure stable operation under real production conditions.

Main Components of Automatic Pulp Board Feeder

A complete automatic pulp board feeder usually consists of the following modules:

1. Pulp Board Storage Magazine

The magazine stores a large quantity of pulp boards before feeding.

Features:

• Adjustable capacity
• Quick loading design
• Automatic height adjustment
• Stable board positioning

It reduces frequent manual loading and improves production continuity.

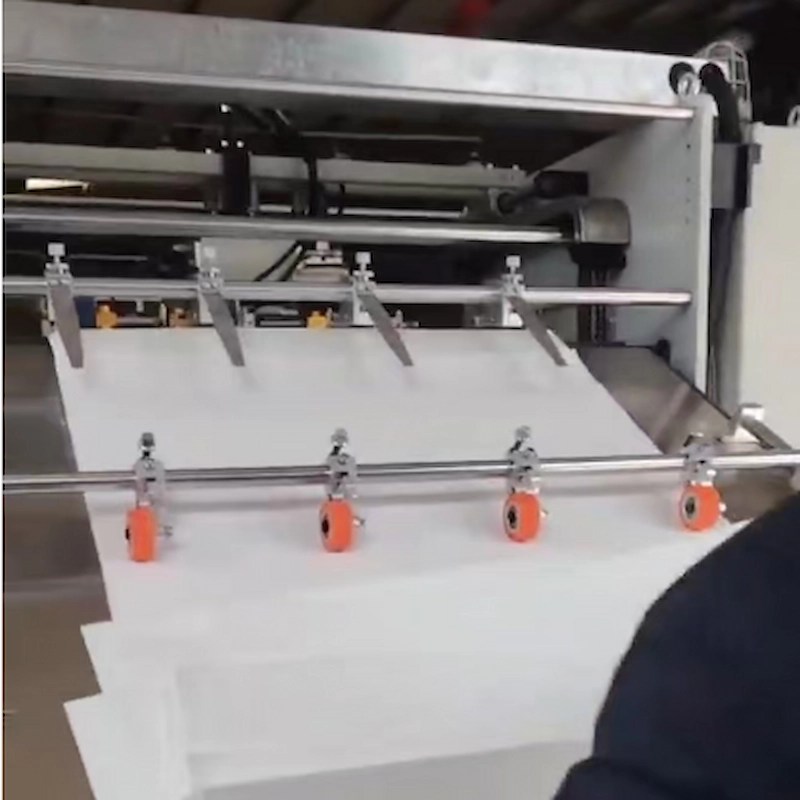

2. Separation Mechanism

The separation unit separates individual pulp boards from stacked materials.

Common technologies include:

• Vacuum separation
• Mechanical fingers
• Air blowing separation
• Servo-controlled lifting systems

This prevents multiple boards from being picked at the same time.

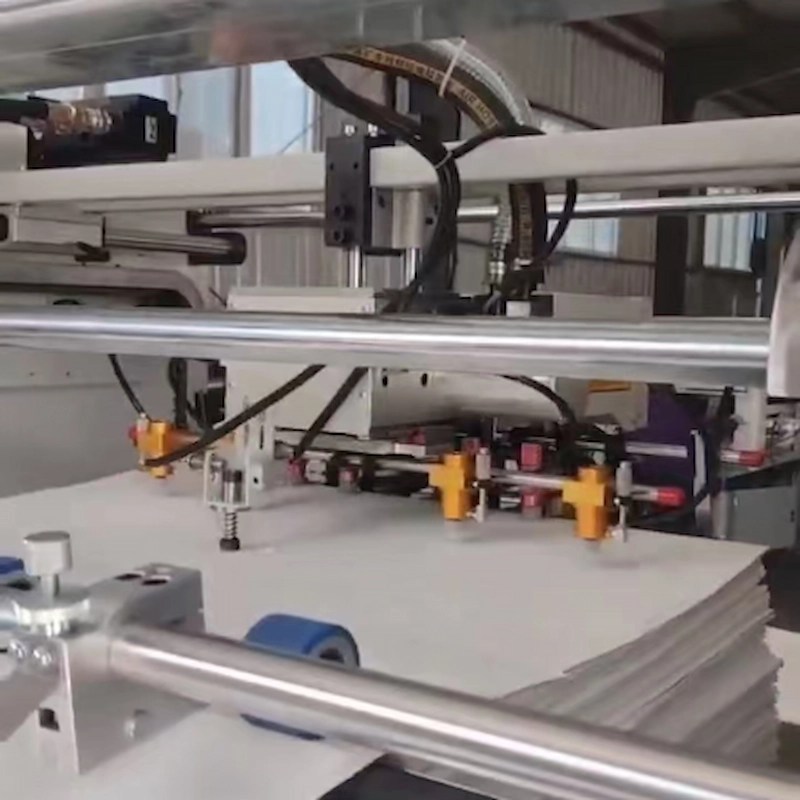

3. Vacuum Pick-and-Place System

The vacuum system is responsible for grabbing and transferring boards.

Main components:

• Vacuum generator
• Suction cups
• Vacuum sensors
• Robotic arms or linear modules

It provides gentle handling without damaging thin pulp materials.

4. Feeding Conveyor System

The conveyor transfers pulp boards to the next production process.

It includes:

• Belt conveyor
• Chain conveyor
• Timing belt system
• Positioning guides

The conveyor speed can be synchronized with upstream and downstream equipment.PLs click here to see our conveyors: Automated Conveyor Lines

5. Servo Positioning System

High-precision servo motors control:

• Feeding speed
• Position accuracy
• Movement distance
• Synchronization

This ensures each pulp board reaches the correct production position.

6. PLC Control System

The PLC acts as the machine’s brain.

Functions include:

• Automatic operation control
• Fault detection
• Production monitoring
• Communication with other machines

Operators can adjust parameters through the HMI touchscreen.

7. Safety Protection System

Safety features include:

• Emergency stop buttons
• Protective covers
• Door sensors
• Alarm systems

These protect operators and improve workplace safety.

If you are planing to purchase such an automatic feeding machine,pls feel free to contact us by email or what’s app to get a professional solution.

Working Principle of Automatic Pulp Board Feeder

The working process is simple:

Step 1: Loading

Operators place stacked pulp boards into the feeding magazine.

The storage system keeps boards aligned and ready for automatic supply.

Step 2: Board Detection

Sensors detect:

• Material presence
• Board height
• Feeding position

The control system calculates the next feeding action.

Step 3: Single Board Separation

The separation mechanism removes one pulp board from the stack.

Vacuum suction or mechanical separation prevents double feeding.

Step 4: Transfer and Positioning

The vacuum picker moves the pulp board to the conveyor or production station.

Servo motors ensure accurate placement.

Step 5: Continuous Feeding

The feeder repeats the process automatically according to production speed.

The machine can operate continuously with minimal human intervention.

Main Applications of Automatic Pulp Board Feeder

This piece of equipment has a very wide range of applications.

1. Food Packaging Industry

Used for:

• Paper trays
• Egg trays
• Fruit trays
• Food containers

It improves hygiene and reduces manual contact.

2. Electronics Packaging

Used for:

• Protective pulp inserts
• Device trays
• Eco-friendly packaging components

High precision prevents product damage.

3. Medical Product Packaging

Applications include:

• Medical device trays
• Sterile packaging supports
• Pharmaceutical packaging

Stainless steel versions can meet cleaner production requirements.

4. Consumer Goods Manufacturing

Used in:

• Cosmetic packaging
• Household products
• Daily necessities

It supports high-volume automated production.

5. Printing and Converting Industry

Automatic feeders supply pulp boards to:

• Printing machines
• Laminating equipment
• Cutting machines

Improving production speed and consistency.

Problems Solved by Automatic Pulp Board Feeder

1. Reduces Labor Dependency

Manual feeding requires workers to continuously place boards into production lines.

The automatic feeder replaces repetitive operations and allows workers to focus on higher-value tasks.

2. Improves Production Speed

Human feeding speed is limited and inconsistent.

Automatic systems provide:

• Continuous operation
• Stable cycle time
• Higher output capacity

3. Reduces Material Waste

Incorrect feeding can cause:

• Misalignment
• Product damage
• Production stoppages

Precision feeding minimizes these problems.

4. Improves Product Quality

Automatic positioning ensures every pulp board enters the process at the same location and angle.

This improves downstream packaging and assembly accuracy.

5. Supports Smart Factory Automation

The feeder can connect with:

• Robots
• MES systems
• Vision inspection systems
• Automated packaging lines

It helps manufacturers move toward Industry 4.0 production.

Automatic Pulp Board Feeder vs Traditional Feeding Methods

Competitor Analysis: Different Types of Feeding Solutions

1. Manual Feeding

Advantages:

• Low initial investment
• Simple operation

Disadvantages:

• High labor cost
• Low efficiency
• More human errors
• Cannot meet high-speed production requirements

Best for small-scale production only.

2. Vibratory Bowl Feeder

Advantages:

• Good for small components
• Mature technology

Disadvantages:

• Not suitable for large flat pulp boards
• May damage soft materials
• Limited flexibility

3. Standard Paper Feeders

Advantages:

• Widely available
• Lower cost

Disadvantages:

• Mainly designed for paper sheets
• Poor adaptability for thick molded pulp products
• Limited customization

4. Customized Automatic Pulp Board Feeder

Advantages:

• Designed for specific products
• Handles different sizes and thicknesses
• Higher feeding accuracy
• Easy integration with production lines

Disadvantages:

• Higher initial investment
• Requires professional engineering support

For manufacturers requiring stable mass production, customized automatic pulp board feeders provide the best long-term value.

Why Choose an Automatic Pulp Board Feeder?

Modern manufacturers are facing increasing pressure from:

• Rising labor costs
• Higher production demands
• Shorter delivery cycles
• Quality control requirements

An automatic pulp board feeder provides a practical solution by combining:

• Reliable mechanical design
• Precise motion control
• Flexible customization
• High-speed automation

It is not only a feeding machine but also an important automation module that improves the efficiency of the entire production line.

Conclusion

An Automatic Pulp Board Feeder is an advanced automation solution designed to automatically separate, pick, and deliver pulp boards with high speed and accuracy.

Through intelligent control systems, precision mechanical structures, and flexible customization, it helps manufacturers reduce labor costs, improve production efficiency, and achieve stable automated manufacturing.

For companies producing sustainable packaging, molded pulp products, and high-volume packaged goods, an automatic pulp board feeder is a key investment for building a faster and smarter production line.
