Surface Defect Inspection System

What Is a Surface Defect Inspection System?

A Surface Defect Inspection System is an automated machine vision solution designed to detect scratches, dents, cracks, stains, pits, burrs, discoloration, holes, coating defects, and other surface imperfections on industrial products.

Instead of relying on manual visual inspection, the system uses industrial cameras, intelligent lighting, AI algorithms, and image processing software to inspect every product in real time.

Whether you’re producing automotive parts, electronic components, batteries, metal sheets, glass panels, medical devices, or packaging materials, a surface defect inspection system helps manufacturers achieve consistent quality while reducing labor costs.

Unlike traditional sampling inspection, modern systems perform 100% online inspection, ensuring defective products never reach customers.

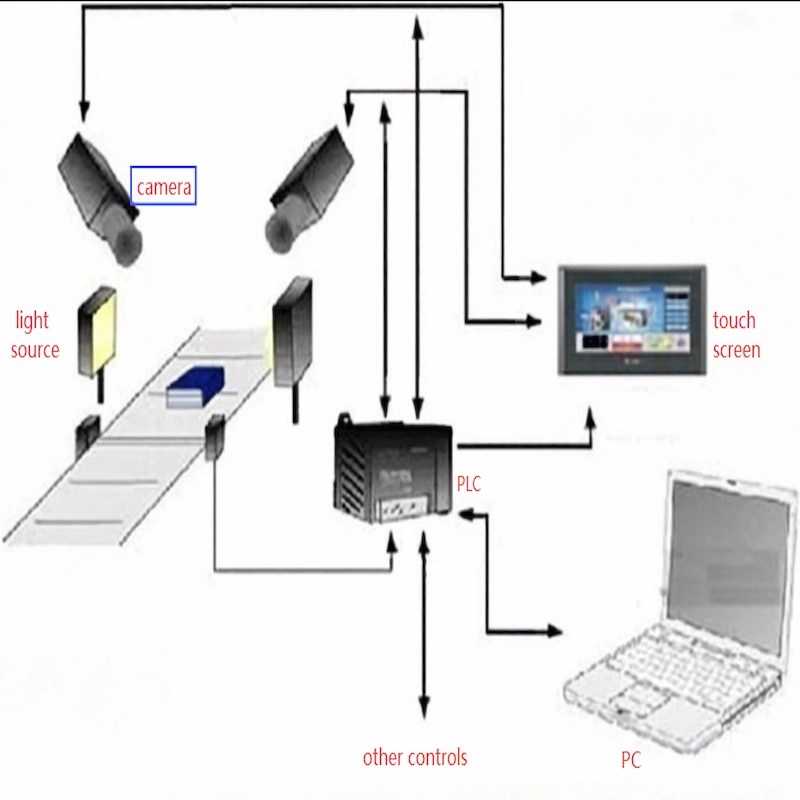

Main Components of a Surface Defect Inspection System

Although different industries require customized configurations, most systems include the following components.

Industrial Cameras

High-resolution industrial cameras capture detailed images of product surfaces.

Depending on inspection requirements, the system may use:

• Area scan cameras
• Line scan cameras
• High-speed cameras
• Color cameras
• Monochrome cameras
• 3D cameras

Multiple cameras are often installed to inspect different angles simultaneously.

Industrial Lighting

Lighting determines image quality more than the camera itself.

Common lighting options include:

• LED ring lights
• Dome lights
• Bar lights
• Backlights
• Dark-field lighting
• Coaxial lighting
• Structured lighting

Proper lighting makes tiny scratches or dents clearly visible.

Above is an Automated Vision Inspection System for Automotive Screws

Vision Processing Software

The software analyzes captured images using advanced algorithms.

Typical inspection functions include:

• Surface defect detection
• Size measurement
• Shape inspection
• Position verification
• Color comparison
• Pattern matching
• OCR character recognition
• Barcode verification

Modern software also supports AI deep learning for complex defect classification.

AI Deep Learning Module

Traditional rule-based inspection struggles with irregular defects.

AI models learn from thousands of product images and continuously improve detection accuracy.

They can recognize:

• Tiny scratches
• Random stains
• Surface contamination
• Coating defects
• Texture abnormalities
• Unknown defect patterns

This significantly reduces false alarms.

Industrial Computer

The industrial PC processes images within milliseconds and communicates inspection results to factory equipment.

PLC Communication

The inspection system connects with:

• PLC
• Robot
• Conveyor
• Sorting equipment
• MES
• ERP

Products identified as defective are automatically rejected.

Reject Mechanism

Depending on production requirements, rejected products can be removed using:

• Air blow
• Robot pick-and-place
• Mechanical pusher
• Diverter gate
• Conveyor switching

As a company specializing in custom automation equipment, we offer not only such visual inspection systems but also a range of other automated assembly solutions, including conveyor lines and safety guarding. We provide comprehensive, one-stop automation solutions designed to save you time and effort.

Contact us today to receive a solution tailored specifically to your needs.Or add what’s app for easy talk.

How Does a Surface Defect Inspection System Work?

The inspection process happens automatically in several steps.

Step 1: Product Positioning

Products arrive on the conveyor with stable positioning.

Encoders or sensors trigger image acquisition.

Step 2: Image Capture

Industrial cameras capture high-resolution images under controlled lighting.

Several cameras may work simultaneously.

Step 3: Image Processing

The software preprocesses images by:

• Noise reduction
• Brightness adjustment
• Edge enhancement
• Contrast optimization

This improves inspection accuracy.

Step 4: Defect Detection

AI or vision algorithms compare the captured images against predefined quality standards.

The system identifies defects such as:

• Scratches
• Cracks
• Burrs
• Holes
• Missing material
• Surface contamination
• Color inconsistency
• Coating defects

Step 5: Decision Making

The software classifies products as:

• Pass
• Fail
• Rework required

Inspection data is stored automatically.

Step 6: Automatic Sorting

Rejected products are removed without stopping production.

Inspection reports can also be uploaded to factory management systems.

Types of Surface Defects That Can Be Detected

Modern inspection systems can identify a wide range of defects, including:

• Scratches
• Cracks
• Chips
• Burrs
• Pits
• Dents
• Rust
• Oxidation
• Oil contamination
• Dust
• Stains
• Paint defects
• Coating peeling
• Color variation
• Welding defects
• Surface deformation
• Missing holes
• Wrong assembly
• Foreign particles

Key Features

A professional surface defect inspection system typically offers:

• 100% online inspection
• High-speed operation
• AI defect recognition
• Multiple camera support
• Flexible lighting configuration
• Automatic NG rejection
• Data recording
• SPC quality analysis
• MES integration
• Remote monitoring
• Recipe switching
• Multi-product compatibility
• Easy maintenance

Applications Across Industries

Surface inspection is widely used in modern manufacturing.

Automotive Industry

Inspect:

• Engine components
• Brake discs
• Gears
• Bearings
• Pistons
• Shafts
• Castings
• Machined parts

Electronics Industry

Detect defects on:

• PCB boards
• Connectors
• Mobile phone housings
• Semiconductor packages
• Display panels
• Camera modules

Battery Manufacturing

Inspect:

• Battery electrodes
• Battery cases
• Welding quality
• Surface contamination
• Coating uniformity

Metal Processing

Suitable for:

• Steel sheets
• Aluminum plates
• Stainless steel
• Copper strips
• Metal coils

Glass Industry

Detect:

• Scratches
• Cracks
• Bubbles
• Edge defects
• Surface contamination

Plastic Products

Inspect:

• Injection molded parts
• Bottles
• Caps
• Consumer products
• Medical plastics

Medical Devices

Ensure defect-free production of:

• Syringes
• Catheters
• Surgical tools
• Medical packaging

Food Packaging

Inspect:

• Bottle appearance
• Cap defects
• Label position
• Seal integrity
• Printing quality

Problems Solved by Surface Defect Inspection Systems

Manufacturers often struggle with inconsistent quality control. A surface defect inspection system addresses these challenges directly.

Manual Inspection Is Inconsistent

Human inspectors become tired and may overlook tiny defects after long shifts.

Machine vision delivers stable, repeatable inspection around the clock.

Labor Costs Keep Rising

Hiring and training inspectors is expensive.

Automated inspection reduces dependence on manual labor while increasing throughput.

Customer Complaints

Undetected defects can lead to returns, warranty claims, and damaged brand reputation.

100% inspection dramatically lowers the risk of defective products reaching customers.

Low Production Efficiency

Manual inspection slows production.

High-speed vision systems can inspect hundreds or even thousands of parts per minute, depending on the application.

Poor Traceability

Manual inspection rarely provides complete records.

Vision systems automatically save images, defect statistics, timestamps, and production reports for quality analysis and traceability.

Difficult-to-Detect Defects

Tiny scratches, inconsistent coatings, or subtle color variations are often impossible to identify reliably by eye.

AI-powered vision systems detect these issues with high repeatability.

Advantages Over Manual Inspection

Competitive Analysis

Choosing the right inspection solution depends on your production environment.

For manufacturers producing high-value or high-volume products, AI-powered surface defect inspection provides the best balance of accuracy, speed, and long-term cost savings.

Why Choose an AI Surface Defect Inspection System?

An AI-driven inspection platform offers significant advantages over traditional vision systems:

• Detects complex and irregular defects
• Continuously improves through model training
• Reduces false rejects and missed defects
• Supports multiple product types with recipe management
• Integrates easily with robots, PLCs, MES, and smart factories
• Enables predictive quality analysis using production data
• Delivers consistent inspection performance regardless of operator experience

Frequently Asked Questions

Can one system inspect multiple products?

Yes. Most modern systems support multiple inspection recipes, allowing fast switching between different product models.

What is the inspection speed?

Depending on camera resolution, product size, and processing complexity, systems can inspect from dozens to thousands of parts per minute.

Can AI detect new defect types?

Yes. Deep learning models can be retrained with new image samples, enabling the system to recognize additional defect categories over time.

Can the system integrate with existing production lines?

Absolutely. Standard communication protocols such as Ethernet/IP, Profinet, Modbus, TCP/IP, and OPC UA allow seamless integration with PLCs, robots, conveyors, and MES platforms.

Is the system suitable for harsh industrial environments?

Yes. Industrial-grade cameras, lighting, and computers are designed for continuous operation in demanding factory conditions.

Conclusion

A Surface Defect Inspection System is no longer just a quality control tool—it is a critical part of modern smart manufacturing. By combining industrial cameras, optimized lighting, AI-powered image analysis, and automated rejection mechanisms, manufacturers can achieve reliable 100% inspection, reduce production costs, minimize customer complaints, and improve overall product quality.

Whether used in automotive, electronics, battery manufacturing, metal processing, medical devices, or packaging, an intelligent surface defect inspection system helps companies increase efficiency, strengthen traceability, and maintain consistent quality standards. As manufacturing continues to evolve toward Industry 4.0, AI-based surface inspection is becoming an essential investment for factories seeking higher productivity and long-term competitiveness.
