What Is Robotic Automatic Loading Equipment?

Robotic Automatic Loading Equipment is an automated system that uses industrial robots, sensors, control systems, and customized fixtures to automatically load parts, materials, or products into machines and production lines.

It replaces manual loading operations in manufacturing processes where workers repeatedly pick, position, and transfer components. The system improves production efficiency, reduces labor dependency, and provides stable loading accuracy for high-volume manufacturing.

Unlike traditional automatic loaders, robotic loading equipment provides higher flexibility. By changing robot programs and tooling, one system can handle different products and production requirements.

It is widely used in:

• CNC machining
• Automotive manufacturing
• Electronics assembly
• Battery production
• Medical device manufacturing
• Metal processing
• Packaging and logistics

For factories upgrading toward smart manufacturing, robotic automatic loading equipment is a key solution for achieving continuous and unmanned production.

---

Main Components of Robotic Automatic Loading Equipment

A complete robotic automatic loading system consists of several integrated modules.

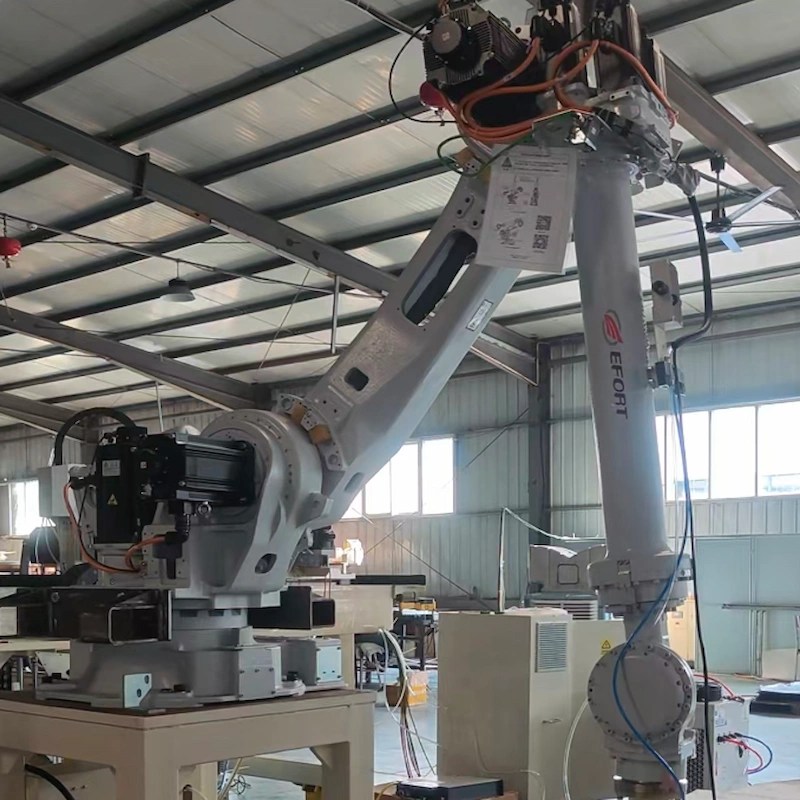

1. Industrial Robot

The industrial robot is the core component responsible for picking and placing materials.

Common robot types include:

6-Axis Robot

Used for complex loading applications requiring flexible movement.

Applications:

• CNC machine loading
• Automotive parts handling
• Assembly operations

Advantages:

• Large working range
• High flexibility
• Multi-direction movement

---

SCARA Robot

Designed for high-speed and lightweight loading tasks.

Applications:

• Electronics components
• Small parts assembly
• Precision feeding

Advantages:

• Fast cycle speed
• High repeatability
• Compact structure

---

Cartesian Robot / Gantry Robot

Suitable for large and heavy products.

Applications:

• Pallet loading
• Heavy component handling
• Warehouse automation

Advantages:

• High payload capacity
• Stable positioning accuracy

---

2. Robot End Effector (Gripper)

The robot needs a suitable gripper to hold and transfer products.

Common options include:

Mechanical Gripper

Used for:

• Metal components
• Automotive parts
• Machined products

Advantages:

• Strong gripping force
• Reliable operation

---

Vacuum Gripper

Used for:

• Electronic components
• Glass products
• Packaging materials

Advantages:

• Fast picking speed
• No product surface damage

---

Magnetic Gripper

Used for:

• Steel parts
• Sheet metal products

Advantages:

• Strong holding capacity
• Simple structure

---

Customized grippers are often designed according to product shape, weight, and production requirements.

3. Automatic Feeding System

The feeding system supplies materials to the robot automatically.

Common feeding methods include:

• Belt conveyor
• Roller conveyor
• Chain conveyor
• Pallet system
• Tray feeding system
• Vibratory bowl feeder
• Automatic storage system

The feeding system ensures continuous material supply and reduces manual intervention.If you want to learn more about conveyors,pls check here: Automated Conveyor Lines

---

4. Positioning and Fixture System

Accurate positioning is critical for robotic loading.

The fixture system ensures:

• Correct product orientation
• Stable positioning
• Repeatable loading accuracy

Customized fixtures are usually manufactured according to the workpiece structure.

---

5. Machine Vision System

Advanced robotic loading equipment can integrate vision technology.

The vision system helps robots:

• Identify products
• Detect position
• Correct loading angle
• Check product presence
• Support flexible production

With vision guidance, robots can handle products with different positions instead of requiring fixed manual placement.We also provide customized vision inspection machine .Contact us and send your requirement,we will offer the professional plan.You can also add what’s app for an easy talk.

---

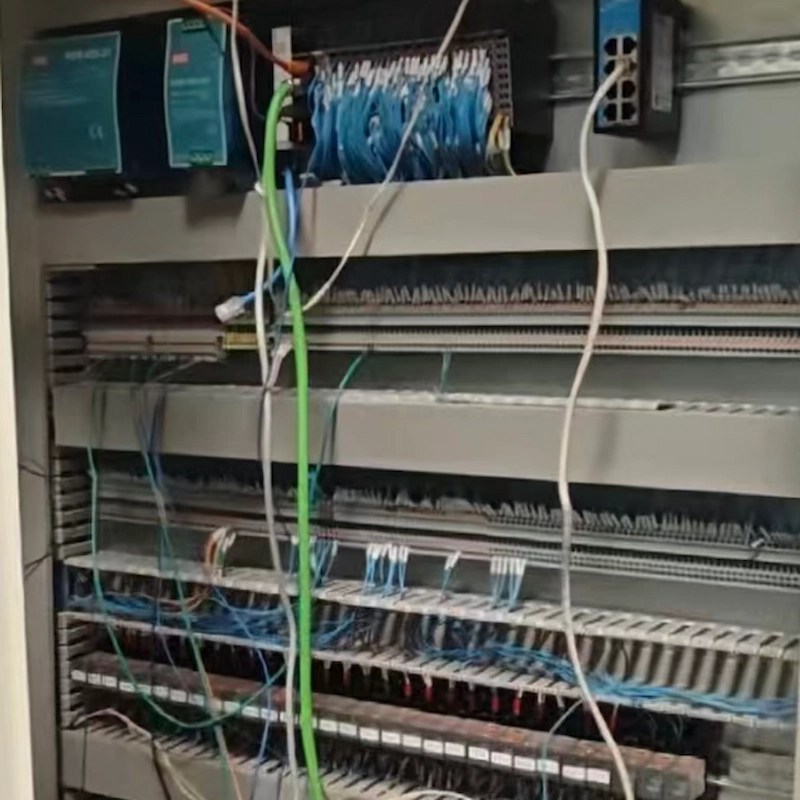

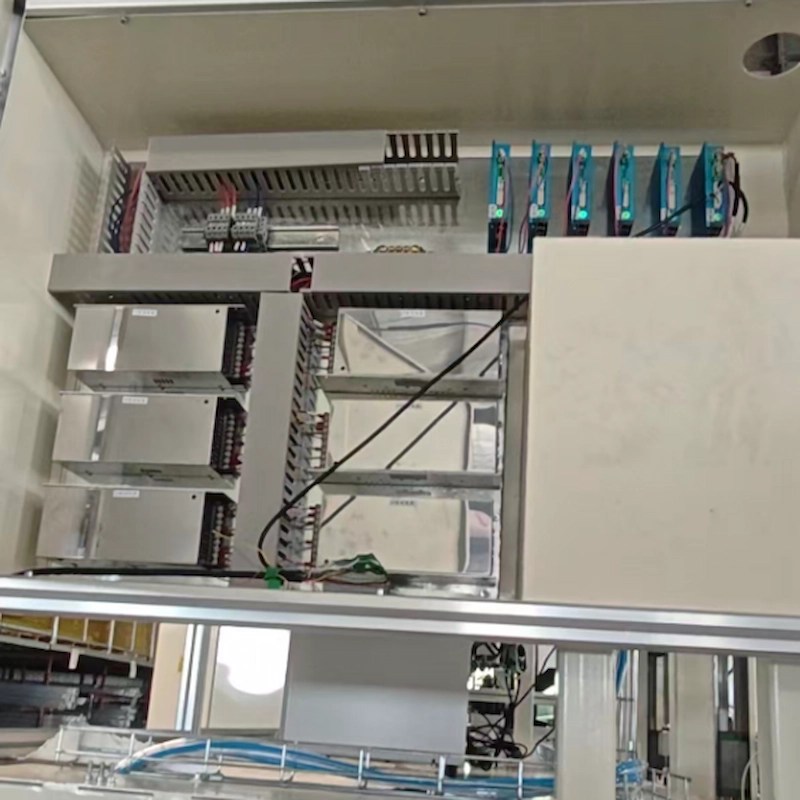

6. PLC and Robot Control System

The control system manages communication between all components.

It controls:

• Robot movement
• Conveyor operation
• Sensors
• Production signals
• Safety systems
• Machine communication

Common control platforms include Siemens, Mitsubishi, Omron, and Schneider PLC systems.

---

7. Safety Protection System

Safety equipment protects operators and machines.

Typical safety components include:

• Safety fence
• Safety door
• Light curtain
• Emergency stop button
• Safety scanner

These systems create a safe working environment for automated production.

---

How Does Robotic Automatic Loading Equipment Work?

The working process is usually divided into five steps.

Step 1: Material Feeding

Parts are supplied through conveyors, pallets, trays, or feeders.

Sensors detect whether materials are ready for loading.

---

Step 2: Product Detection

The control system receives signals from:

• Sensors
• Vision cameras
• Positioning devices

The robot receives the loading command.

---

Step 3: Robotic Picking

The robot moves to the pickup position.

The gripper:

• Clamps
• Suctions
• Holds

the workpiece securely.

---

Step 4: Automatic Loading

The robot transfers the product into:

• CNC machines
• Assembly stations
• Inspection equipment
• Packaging systems

The robot places the product with high repeatability.

---

Step 5: Continuous Automatic Operation

After loading completion, the system sends feedback signals and starts the next cycle.

The production process continues automatically with minimal human involvement.

---

Main Applications of Robotic Automatic Loading Equipment

1. CNC Machine Loading Automation

One of the most common applications.

Used for:

• CNC turning machines
• Milling machines
• Grinding machines
• Drilling equipment

Benefits:

• Higher machine utilization
• Reduced operator workload
• Stable production quality

---

2. Automotive Industry

Automotive manufacturers use robotic loading systems for:

• Engine components
• Transmission parts
• Brake components
• Aluminum castings
• Battery modules

Robots provide the precision required for automotive mass production.

---

3. Electronics Manufacturing

Electronic products require fast and accurate handling.

Applications:

• PCB loading
• Connector feeding
• Small component handling
• Assembly line feeding

Robotic systems reduce damage caused by manual handling.

---

4. Lithium Battery Manufacturing

Battery production requires clean and accurate automation.

Applications include:

• Battery cell loading
• Battery tray handling
• Module assembly
• Testing station feeding

Robotic loading improves safety and production consistency.

---

5. Medical Device Manufacturing

Medical products require strict quality control.

Applications:

• Precision component handling
• Assembly feeding
• Inspection loading

Robotic automation reduces contamination risks.

---

Problems Solved by Robotic Automatic Loading Equipment

1. High Labor Cost

Manual loading requires continuous workers and creates increasing labor pressure.

Robotic loading equipment helps:

• Reduce manpower requirements
• Lower operating costs
• Improve production stability

---

2. Low Production Efficiency

Manual loading speed depends on workers.

Robotic systems provide:

• Stable cycle time
• 24/7 operation capability
• Higher production output

---

3. Inconsistent Product Quality

Human operation may cause:

• Positioning errors
• Product damage
• Different loading force

Robotic systems provide consistent accuracy.

Typical repeatability:

±0.02mm to ±0.05mm

(depending on robot type and application)

---

4. Difficult Working Conditions

Robots can replace workers in environments with:

• Heavy materials
• High temperature
• Oil contamination
• Dangerous operations

---

5. Lack of Production Flexibility

Traditional automation often works only for one product.

Robotic loading systems support:

• Quick program changes
• Multiple product models
• Flexible manufacturing

---

Competitive Analysis of Robotic Automatic Loading Equipment

Category	Main Competitive Advantage	Main Challenge
Traditional Automation Suppliers	Low cost and simple structure	Cannot meet flexible manufacturing requirements
International Robot Manufacturers	Advanced technology and reliability	High investment and operating costs
Chinese Automation Manufacturers	Cost advantage and fast engineering response	Need stronger international service capability
Non-Standard Automation Integrators	Complete customized solutions and production optimization	Requires strong engineering experience

---

How to Choose Robotic Automatic Loading Equipment?

Before purchasing, manufacturers should evaluate:

Product Requirements

Consider:

• Product size
• Product weight
• Material type
• Loading accuracy

---

Production Requirements

Analyze:

• Production capacity
• Cycle time
• Working hours
• Future expansion

---

Integration Capability

A professional supplier should provide:

• Mechanical design
• Robot programming
• Electrical control
• Vision integration
• System commissioning

---

Why Choose Customized Robotic Automatic Loading Equipment?

Different factories have different products and production processes.

A customized robotic loading system can integrate:

• Industrial robots
• Conveyor systems
• Automatic feeders
• Vision inspection
• MES communication
• Production tracking systems

Customized automation provides better efficiency and return on investment compared with standard equipment.

---

Conclusion

Robotic Automatic Loading Equipment is an essential automation solution for modern manufacturing. It helps companies replace repetitive manual operations with intelligent robotic systems that deliver higher efficiency, accuracy, and production stability.

From CNC machining and automotive manufacturing to electronics and battery production, robotic loading technology enables factories to reduce labor costs, improve product quality, and move toward smart manufacturing.

For manufacturers seeking flexible and scalable automation, a customized robotic automatic loading system is a reliable investment for long-term production improvement.
