| Product Name | Automatic Loading Machine for Manufacturing Plants |
| MOQ | 1 |
| Size | Customized |
| Place of origin | Shandong, China |
| Color | Customized |
| Price | $5000-$60000 (the final price will depend on the actual configuration) |
Automatic Loading Machine for Manufacturing Plants
Modern manufacturing plants are under constant pressure to increase production, reduce labor costs, improve quality, and shorten delivery times. One of the biggest bottlenecks in production is still the loading process between machines, conveyors, assembly stations, CNC equipment, stamping machines, injection molding machines, testing stations, and packaging lines.
An automatic loading machine for manufacturing plants eliminates manual loading operations by automatically picking, positioning, and feeding workpieces into production equipment with high precision and repeatability. Whether integrated into a fully automated production line or upgrading a single workstation, automatic loading systems significantly improve productivity while reducing labor dependency.
What Is an Automatic Loading Machine for Manufacturing Plants?
An automatic loading machine is an intelligent material handling system designed to automatically transport raw materials, semi-finished products, or finished components into manufacturing equipment.
Instead of relying on operators to manually place parts into machines, the loading machine automatically performs:
- Picking materials
- Positioning parts
- Feeding workpieces
- Transferring products
- Coordinating with production equipment
- Communicating with PLC, MES, ERP, or robot systems
It becomes the “first step” of an automated production process, ensuring continuous operation with minimal human intervention.
Typical equipment includes:
- Cartesian gantry robots
- SCARA robots
- Six-axis industrial robots
- Servo-driven manipulators
- Conveyor loading systems
- Vision-guided loading systems
- Customized robotic loading cells
Why Manufacturing Plants Need Automatic Loading Machines
Manual loading has long been one of the most labor-intensive processes in factories.
Common production challenges include:
| Factory Pain Point | Production Impact |
|---|---|
| Labor shortages | Production interruptions |
| Rising labor costs | Lower profitability |
| Operator fatigue | Loading errors |
| Inconsistent positioning | Poor product quality |
| Safety risks | Workplace injuries |
| Slow production rhythm | Reduced output |
| High rejection rates | Increased production cost |
| Difficult shift scheduling | Production instability |
Automatic loading machines solve these problems by delivering stable, continuous, and highly accurate loading performance.
Many factories report:
- 30–70% labor cost reduction
- 20–60% production efficiency improvement
- Up to 99.9% loading consistency
- Significant reduction in quality defects
- 24/7 unattended production capability
Main Components of an Automatic Loading Machine
Although every project is customized, a typical automatic loading system includes the following modules.
| Component | Function |
|---|---|
| Robot or Gantry System | Picks and transfers products |
| Servo Motion System | Controls precise movement |
| End-of-Arm Tooling (EOAT) | Vacuum, gripper, magnetic or customized tooling |
| Material Conveyor | Supplies products automatically |
| Positioning Fixture | Ensures accurate loading |
| Vision Inspection (Optional) | Detects product orientation |
| PLC Control Cabinet | Controls machine logic |
| HMI Touch Screen | Operator interface |
| Safety Protection System | Fences, light curtains, emergency stop |
| Sensors | Detect product position and machine status |
How an Automatic Loading Machine Works
The working process is straightforward but highly synchronized.
Step 1 Material Detection
Sensors detect incoming materials on conveyors or storage trays.
Step 2 Product Identification
If equipped with machine vision, cameras recognize orientation and position.
Step 3 Automatic Picking
The robot or manipulator picks up the workpiece using the appropriate gripper.
Step 4 Precision Positioning
Servo motors accurately position the product within ±0.02–0.05 mm.
Step 5 Automatic Loading
The workpiece is placed into:
- CNC machines
- Injection molding machines
- Assembly stations
- Testing equipment
- Packaging machines
- Welding fixtures
Step 6 Process Confirmation
Sensors confirm successful loading before the machine begins processing.
The cycle repeats automatically without operator intervention.

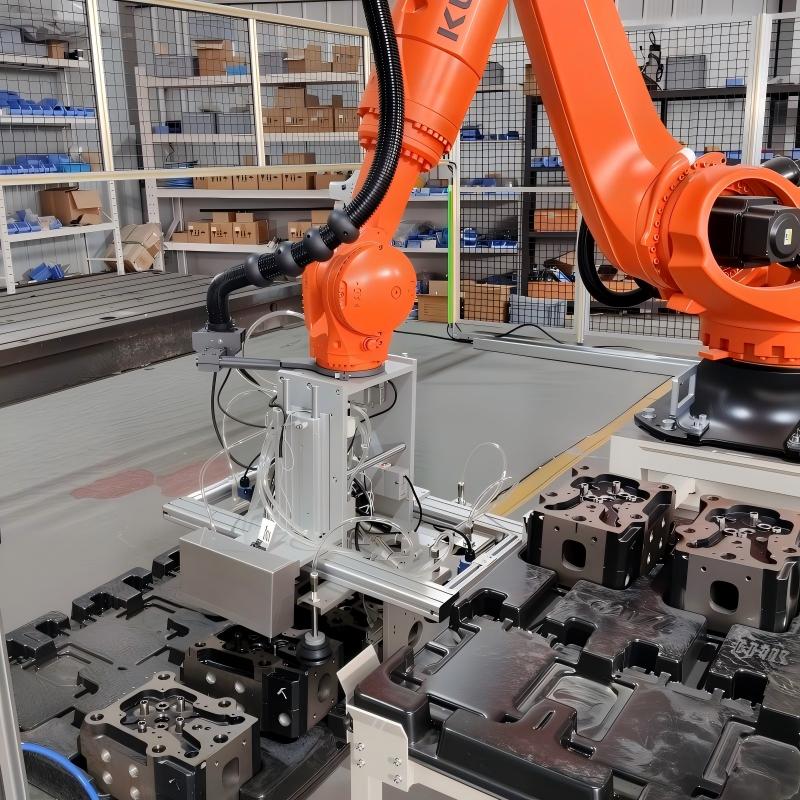

This is an automatic loading machine designed for the automotive manufacturing sector; it enables high-precision automated loading, and its intelligent design supports customization.
Technical Specifications
The following specifications can be customized according to production requirements.
| Parameter | Specification |
|---|---|
| Brand | JOIN |
| Origin | Shandong, China |
| Surface Treatment | Natural Finish / Powder Coating / Anodizing |
| Power | Customized |
| Rated Load | Customized |
| Voltage | Customized (220V / 380V / 50Hz) |
| Working Radius / Stroke | Customized |
| Repeat Positioning Accuracy | ±0.02 mm to ±0.05 mm |
| Feeding Speed | Customized |
| Number of Axes | 2-Axis Gantry / 4-Axis SCARA / 6-Axis Robot |
| OEM & ODM | Available |
| Control System | PLC + Servo |
| Safety Level | Customized |
| Communication | Ethernet / Profinet / Modbus / EtherCAT |
Major Applications Across Manufacturing Industries
Automatic loading systems have become essential equipment in modern smart factories.
General Machinery Manufacturing
- CNC machining centers
- Metal processing
- Precision machining
- Die casting
Benefits:
- Continuous loading
- Reduced operator workload
- Improved machining consistency
Automotive Manufacturing
Applications include:
- Engine components
- Brake discs
- Transmission parts
- Steering systems
- Wheel hubs
- Chassis components
Benefits:
- High-speed loading
- Traceable production
- Stable product quality
3C Electronics
Suitable for:
- Mobile phone components
- Laptop assembly
- PCB handling
- Precision connectors
Benefits:
- High precision
- Anti-scratch handling
- Static protection options
New Energy Manufacturing
Widely used in:
- Lithium battery production
- Battery module assembly
- EV motor manufacturing
- Inverter production
Benefits:
- High repeatability
- Automated production
- Intelligent logistics integration
Medical Device Manufacturing
Applications include:
- Syringe production
- Medical tubing
- Surgical instruments
- Diagnostic equipment
Advantages:
- Cleanroom compatibility
- Stable loading
- High reliability
Food Packaging
Suitable for:
- Cartons
- Bottles
- Trays
- Flexible packages
Benefits:
- Hygienic design
- High-speed loading
- Food-grade materials available
This is an automated loading system that can be used for the 3C electronics sector, primarily used for the coordinated feeding of components. Key features include a high degree of automation, high precision, stability, intelligence, and flexibility. It can be customized to meet specific factory requirements. Tell us your goals by email, or you can also send messages by Whatsapp/Wechat ( Linda 0086 155 6268 9251 ) for easy contact, we’ll customize a solution for you.
Automatic Loading Machine vs Manual Loading
| Comparison | Automatic Loading Machine | Manual Loading |
|---|---|---|
| Production Speed | High | Low |
| Position Accuracy | ±0.02–0.05 mm | Depends on operator |
| Labor Requirement | Very Low | High |
| Production Stability | Excellent | Variable |
| Product Quality | Consistent | Inconsistent |
| Worker Safety | High | Lower |
| Operating Cost | Low over time | High |
| 24/7 Production | Yes | No |
| Data Collection | Supported | Not available |
| ROI | High | Low |
Automatic loading becomes increasingly cost-effective as production volume grows.
Customized System vs Standard Machine
Every factory has unique products, layouts, and production requirements.
| Feature | Customized Solution | Standard Machine |
|---|---|---|
| Equipment Size | Fits factory layout | Fixed dimensions |
| Product Compatibility | Designed for specific parts | Limited |
| Robot Selection | Flexible | Fixed |
| Loading Speed | Optimized | Standard |
| Integration | Easy | May require modification |
| Future Expansion | Easy | Limited |
| Long-Term Value | Higher | Moderate |
Customized solutions often deliver greater productivity and adaptability despite a higher initial investment.
Why Manufacturers Are Choosing Automation
Industrial automation continues to expand due to several factors:
- Labor shortages in many regions
- Rising wages
- Demand for higher quality
- Smart factory initiatives
- Industry 4.0 adoption
- Flexible manufacturing needs
Automatic loading machines support these trends by enabling faster, safer, and more reliable production.
Market Feedback
Manufacturers that adopt automatic loading systems commonly report measurable improvements.
| Performance Indicator | Before Automation | After Automation |
|---|---|---|
| Operators Required | 4–6 | 1–2 |
| Production Efficiency | 100% | 130–180% |
| Loading Accuracy | Operator-dependent | Up to 99.9% consistency |
| Product Defect Rate | Higher | Reduced by 20–60% |
| Equipment Utilization | 60–75% | 85–95% |
| Production Downtime | Frequent | Significantly reduced |
The exact improvements depend on product type, process complexity, and system integration.
Key Advantages of JOIN Automatic Loading Machines
Our solutions are engineered to meet the needs of modern manufacturing environments.
Fully Customized Design
Every project is designed according to:
- Product dimensions
- Machine layout
- Production capacity
- Factory space
- Future expansion plans
High Precision
Repeat positioning accuracy:
±0.02 mm to ±0.05 mm
Ideal for precision manufacturing applications.
Flexible Robot Configurations
Available options include:
- 2-axis gantry systems
- 4-axis SCARA robots
- 6-axis articulated robots
This flexibility allows the system to match simple pick-and-place tasks or complex multi-directional loading operations.
Easy Integration
Compatible with:
- CNC machines
- Assembly lines
- AGVs
- Conveyor systems
- Vision inspection
- MES
- ERP
- PLC automation
Reliable Continuous Operation
Designed for demanding industrial environments with stable performance during continuous multi-shift production.
OEM & ODM Manufacturing
We provide complete OEM and ODM services for equipment manufacturers, system integrators, and industrial automation partners.
This automated loading system identifies parts via camera, self-adjusting its grip for skewed objects and scanning QR codes to ensure they are qualified for processing.
Why Choose JOIN?
Selecting the right automation partner is just as important as selecting the right equipment.
JOIN provides more than machines—we deliver complete loading automation solutions.
Engineering Expertise
Our experienced engineering team designs solutions tailored to your production process rather than relying on one-size-fits-all equipment.
Extensive Industry Experience
We support projects across:
- Automotive
- Machinery
- Electronics
- New energy
- Medical
- Food packaging
Flexible Customization
Every key parameter can be customized, including:
- Load capacity
- Working radius
- Feeding speed
- Robot configuration
- End-of-arm tooling
- Surface treatment
- Control system
High-Quality Manufacturing
Equipment is manufactured with durable industrial components and subjected to rigorous quality inspections to ensure long-term reliability.
Complete Project Support
From initial consultation to installation, commissioning, training, and after-sales service, JOIN provides end-to-end support throughout the project lifecycle.
Frequently Asked Questions
Can the machine be customized?
Yes. Load capacity, dimensions, robot type, speed, voltage, tooling, and software can all be customized.
Which robot is best?
- 2-axis gantry: Best for simple linear loading
- 4-axis SCARA: Ideal for high-speed precision applications
- 6-axis robot: Suitable for complex loading paths and maximum flexibility
Can it connect with existing production lines?
Yes. The system can integrate with existing machines, conveyors, robots, PLCs, MES, and other factory automation equipment.
Does it support OEM and ODM?
Yes. JOIN provides both OEM and ODM manufacturing services for global customers.
Conclusion
An automatic loading machine for manufacturing plants is no longer a luxury—it is an essential investment for manufacturers seeking higher productivity, lower operating costs, and consistent product quality. By replacing repetitive manual loading with intelligent automation, factories can improve throughput, enhance workplace safety, and build a more resilient, future-ready production line.
With customizable configurations, precision repeatability of ±0.02 mm to ±0.05 mm, support for 2-axis, 4-axis, and 6-axis robotic systems, and seamless integration into industries ranging from automotive and 3C electronics to new energy, medical devices, and food packaging, JOIN delivers scalable automation solutions tailored to real manufacturing challenges. Whether you need a standalone loading station or a fully integrated smart production line, our engineering team can help you achieve faster ROI and sustainable long-term performance.
